Hydraulic Plane With Isometric DWG Plan for AutoCAD

Hydraulic Plane With Isometric DWG Plan for AutoCAD

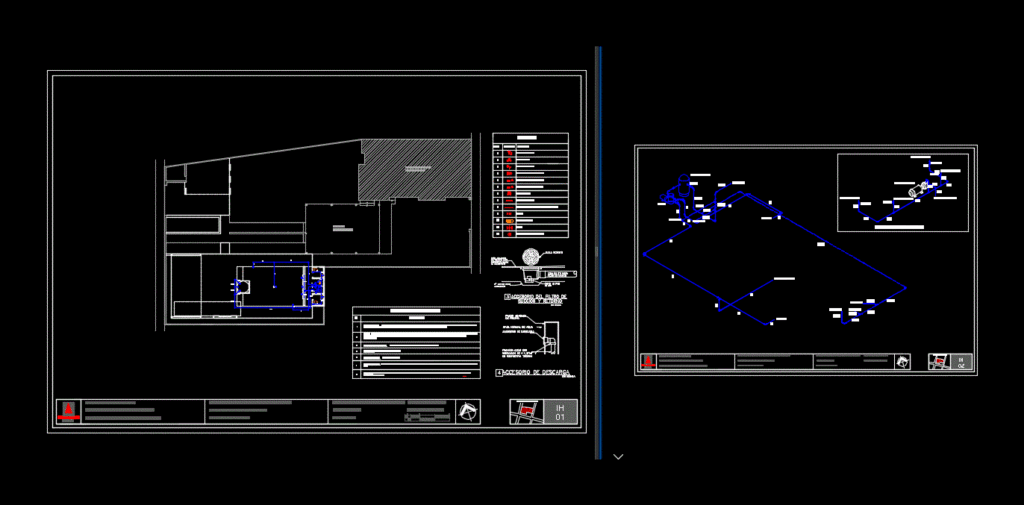

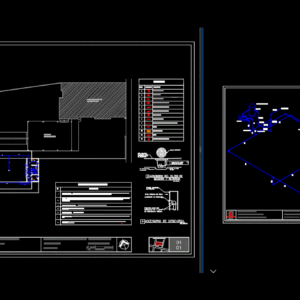

The plan shows the details of the hydraulic system designed for a pool with his isometric to better understand its operation

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Location of the land:, Project: remodeling sarmiento crisanty, Date: november, Owner: cesar sarmiento villarin, Architect: armando israel aké sánchez, Property: house room, Flat: hydraulic installation plan, Area: set, scale:, Dimensions: meters, Indicated dimensions, Location: campeche, Armando aké, Projects, main house, N.p.t., Palapa, N.p.t., Scaf, description, do not., List of pool equipment, ball valve:, Pvc, Skimmer:, Installed in the wall in. In connection with detachable filter attachment for, Aspiration cleaning., Rip, From model, Drainage, Type o.d., bomb:, Primary filter in one with basket two electric motor of, Suction discharge with threads of jacuzzi model, Inc. Similary., Sand filter:, With housing of square feet of sand of gpm. model, With valve manometer of manufactured by jacuzzi inc. Similary., Hydropneumatic:, Brand evans with capacity of electric of with power of, ., Symbology, Copper elbow, key, Symbology, description, Stopcock, Column of cold water rises, Copper tee, Copper bushin reduction, Scaf, Copper tubing for pool returns, bomb, copper tubing, Copper elbow, Hydropneumatic, Union, Filter mesh, Line of towards, Suction filter, Of pool with, Least everything, around, Finished floor, Pvc plug, unscaled, Slope towards, The accessory, Return filter attachment, Normal water level, unscaled, Discharge accessory, Provide elbow with reduction of respective pipe, Finished swimming pool wall, Discharge accessory, Existing copper pipe, Scaf, Bcaf, Low column of cold water, Bcaf, Location of the land:, Project: remodeling sarmiento crisanty, Date: november, Owner: cesar sarmiento villarin, Architect: armando israel aké sánchez, Property: house room, Flat: isometric hydraulic swimming pool, Area: set, Scale: no scale, Dimensions: meters, Indicated dimensions, Location: campeche, Armando aké, Projects, Skimmer, Floor drain, bomb, Sand filter, discharge, toilet, Water hammer, toilet, Water hammer, sink, Water hammer, sink, Water hammer, Existing pipe, Hydropneumatic, Hydraulic detail bathrooms

Raw text data extracted from CAD file:

UBICACION DEL TERRENO: 01 PROYECTO: REMODELACION SARMIENTO CRISANTY FECHA: NOVIEMBRE 2010 PROPIETARIO: CESAR SARMIENTO VILLARIN ARQUITECTO: ARMANDO ISRAEL AKÉ SÁNCHEZ PROPIEDAD: CASA HABITACIÓN PLANO: PLANO DE INSTALACION HIDRAULICA AREA: CONJUNTO ESCALA: 1:100 ACOTACIONES: METROS COTAS LAS INDICADAS UBICACIÓN: SIHOCHAC, CAMPECHE Armando Aké proyectos 0 1 0.5 2.5 5 7.5 CASA PRINCIPAL N.P.T. +0.60m IH PALAPA N.P.T. +0.30m scaf 3 1 2 4 4 4 5 5 6 1/2" 1/2" 3/4" 3/4" 3/4" 1/2" 7 7 4 4 4 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 2" 2" 2" 2" 2" 2" 2" 2" 2" 2" 6 5 4 3 2 1 DESCRIPCION No. LISTA DE EQUIPOS DE PISCINA 7 VALVULA DE BOLA: 1 1/2-PULGADAS, PVC SKIMMER: INSTALADO EN LA PARED DE LA PISCINA, 1 1/2 PULG. EN CONEXION CON FILTRO DESMONTABLE Y ACCESORIO PARA ASPIRACION Y LIMPIEZA. DESGARGA: PLASTICO, DE 2" MODELO "MO". DRENAJE DE PISO/PISCINA: PLASTICO, 2" MODELO "MO", TIPO ANTI-VORTEX DE 7" O.D. BOMBA: AUTOCEBANTE, FILTRO PRIMARIO (TODA EN UNA PIEZA), CON CANASTA PLASTICA, DOS VELOCIDADES, MOTOR ELECTRICO DE 1 1/2 HP, 230 V, 8.0 AMPS; SUCCION Y DESCARGA CON ROSCAS DE 2", UL, MODELO 1TMF-S2 "MAGNUM FORCE" DE JACUZZI INC. O SIMILAR. FILTRO DE ARENA: CON CARCASA DE MATERIAL TERMOPLASTICO, 1.33 PIES CUADRADOS DE ARENA DE FILTRADO, 25 GPM. MODELO L160, CON MANOMETRO DE VACIO, VALVULA DE PUERTA, FABRICADO POR JACUZZI INC. O SIMILAR. HIDRONEUMATICO: MARCA EVANS CON CAPACIDAD DE 20 LITROS, ELECTRICO A 2 POLOS,MONOFASICO DE 127/220V CON POTENCIA DE 1 HP. SIMBOLOGIA CODO 90 DE COBRE CLAVE SIMBOLOGIA DESCRIPCIÓN 1 2 3 4 5 5 6 7 LLAVE DE PASO SUBE COLUMNA DE AGUA FRIA TEE DE COBRE REDUCCION BUSHIN DE COBRE scaf 8 9 10 TUBERIA DE COBRE PARA RETORNOS ALBERCA BOMBA TUBERIA DE COBRE CODO 45 DE COBRE HIDRONEUMATICO UNION MALLA FILTRANTE LINEA DE 2"d HACIA FILTRO DE SUCCION DE PISCINA CON 2" MINIMO TODO ALREDEDOR PISO ACABADO TAPON DE PVC SIN ESCALA PENDIENTE HACIA EL ACCESORIO DE 2"d 3 ACCESORIO DEL FILTRO DE \LSUCCION Y RETORNO NIVEL NORMAL DE AGUA SIN ESCALA ACCESORIO DE DESCARGA PROVEER CODO CON REDUCCION DE 1 1/2"x2" Y SU RESPECTIVA TUBERIA PARED ACABADA DE PISCINA 4 ACCESORIO DE DESCARGA 11 TUBERIA DE COBRE EXISTENTE scaf scaf bcaf 12 BAJA COLUMNA DE AGUA FRIA bcaf UBICACION DEL TERRENO: 02 PROYECTO: REMODELACION SARMIENTO CRISANTY FECHA: NOVIEMBRE 2010 PROPIETARIO: CESAR SARMIENTO VILLARIN ARQUITECTO: ARMANDO ISRAEL AKÉ SÁNCHEZ PROPIEDAD: CASA HABITACIÓN PLANO: ISOMETRICO HIDRAULICO ALBERCA AREA: CONJUNTO ESCALA: SIN ESCALA ACOTACIONES: METROS COTAS LAS INDICADAS UBICACIÓN: SIHOCHAC, CAMPECHE Armando Aké proyectos IH 2" 2" 2" 2" 2" 2" 2" 2" 2" 2" 2" 2" 2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" 1-1/2" SKIMMER SKIMMER DRENAJE DE PISO BOMBA FILTRO DE ARENA DESCARGA DESCARGA DESCARGA DESCARGA DESCARGA DESCARGA INODORO GOLPE DE ARIETE INODORO GOLPE DE ARIETE LAVABO GOLPE DE ARIETE LAVABO GOLPE DE ARIETE TUBERIA EXISTENTE HIDRONEUMATICO 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 3/4" 3/4" 3/4" 3/4" 3/4" DETALLE HIDRAULICO BAÑOS

Language	Spanish
Drawing Type	Plan
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Plastic
Measurement Units
Footprint Area
Building Features	Pool, Car Parking Lot
Tags	autocad, designed, details, DWG, einrichtungen, facilities, gas, gesundheit, hydraulic, isometric, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, plan, plane, POOL, provision, shows, system, understand, wasser bestimmung, water
