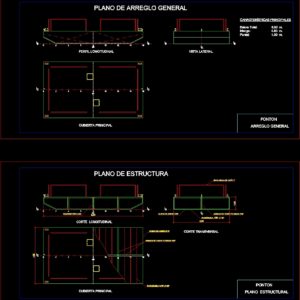

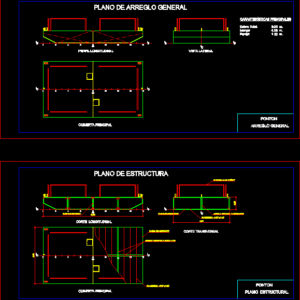

Pontoon DWG Block for AutoCAD

Pontoon DWG Block for AutoCAD

Structure Pontoon

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

main deck, longitudinal profile, side view, pontoon, general arrangement, general arrangement plan, longitudinal cut, cross section, structural plan, structure plan, watertight bulkhead

Raw text data extracted from CAD file:

1.00 4,50 8,00 4,50 C 0 L 2 4 6 8 10 12 14 16 C L CUBIERTA PRINCIPAL PERFIL LONGITUDINAL B 0 L 2 4 6 8 10 12 14 16 B L B L VISTA LATERAL B L C L CARACTERÍSTICAS PRINCIPALES Eslora Total: 8.00 m. Manga: 4.50 m. Puntal: 1.00 m. PONTON ARREGLO GENERAL PLANO DE ARREGLO GENERAL ME ME C 0 L 2 4 6 8 10 12 14 16 C L CUBIERTA PRINCIPAL CORTE LONGITUDINAL B 0 L 2 4 6 8 10 12 14 16 B L CORTE TRANSVERSAL B L C L PONTON PLANO ESTRUCTURAL PLANO DE ESTRUCTURA ME ME ANGULO DE CHAPA PLEGADA 3/16" CASCO DE ACERO 3/16" PLANCHUELA 3/16" x1 1/2" 1.00 5 BARANDILLA DE CAÑO 1" 5 PLANCHUELA 3/16" x1 1/2" ANGULO DE CHAPA PLEGADA 3/16" CASCO DE ACERO 3/16" 5 MAMPARO ESTANCO

Language	Spanish
Drawing Type	Block
Category	Roads, Bridges and Dams
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features	Deck / Patio
Tags	autocad, block, bridge, DWG, ships, structure
