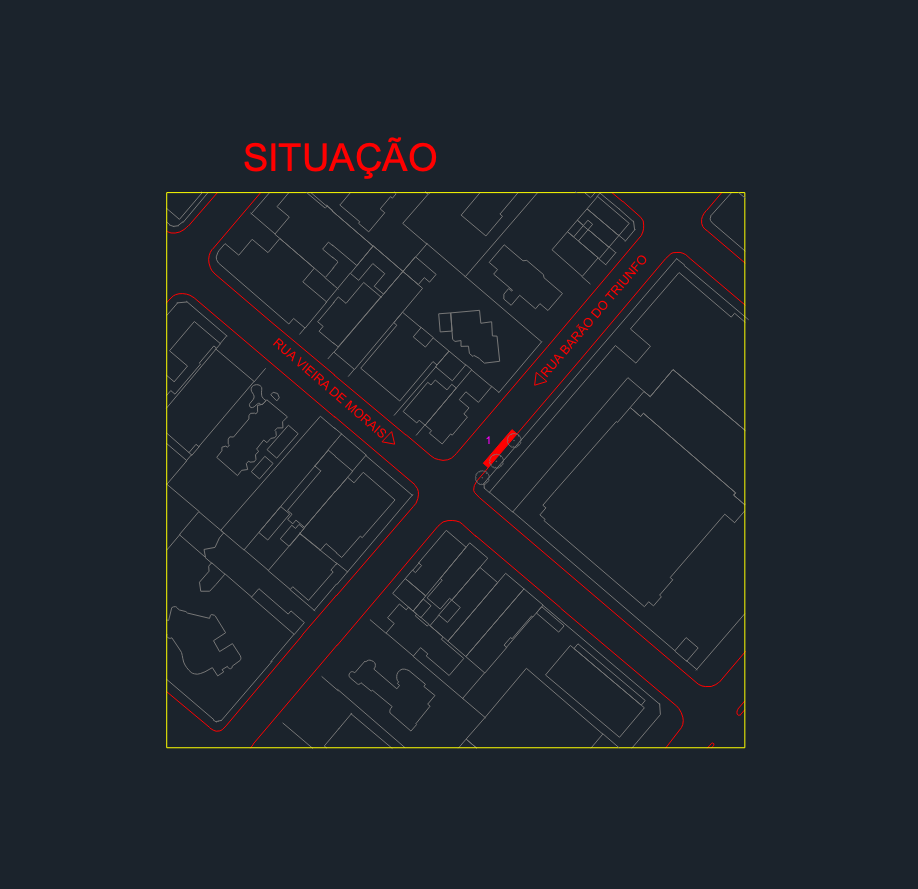

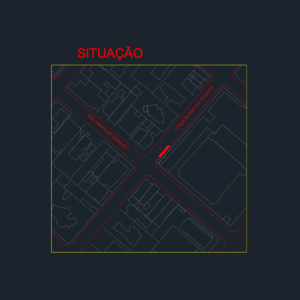

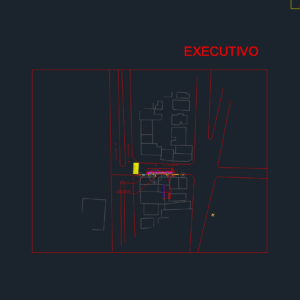

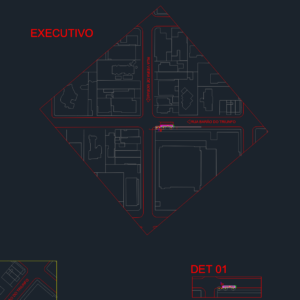

PBSC bike-sharing station implementation plan for the intersection of Rua Barão do Triunfo and Rua Vieira de Morais. Includes detailed horizontal signaling for floor painting using acrylic resin (white and red) and vertical signage placement following CET technical standards. Detail 01 specifies exact offsets for station modules (paves), bollards (cylindrical delineators) and existing utility poles. Clearances are defined as 0.20m from existing traffic signage, 1.20m from curb ramps, and a minimum of 5.00m from building alignments. Station area calculations for Pave A and B total 42m², with specific quantities for modules and bollards.
Public Bike Sharing Station Signaling and Placement Executive Plan
