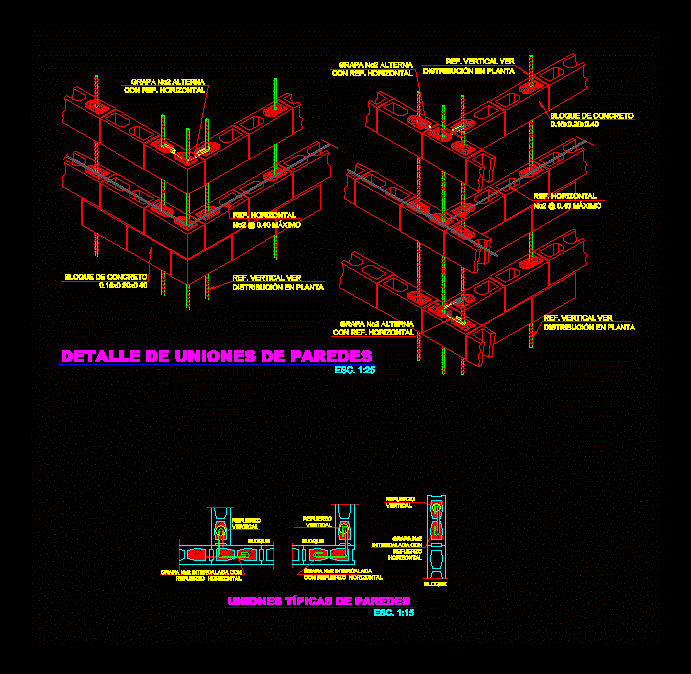

Unions Typical Block Walls DWG Detail for AutoCAD

Details – specifications – axonometric

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

ref. vertical see distribution in plan, alternate staple with ref. horizontal, ref. vertical see distribution in plan, concrete block, ref. vertical see distribution in plan, alternate staple with ref. horizontal, ref. maximum horizontal, concrete block, ref. maximum horizontal, block, esc., wall joints, staple inserted with horizontal reinforcement, vertical reinforcement, staple inserted with horizontal reinforcement, vertical reinforcement, staple inserted with horizontal reinforcement, esc., detail of wall joints

Raw text data extracted from CAD file:

REF. VERTICAL VER DISTRIBUCIÓN EN PLANTA \W3.27835; GRAPA No2 ALTERNA CON REF. HORIZONTAL \W3.27835; GRAPA No2 ALTERNA CON REF. HORIZONTAL \W5.68428; REF. VERTICAL VER DISTRIBUCIÓN EN PLANTA BLOQUE DE CONCRETO 0.15x0.20x0.40 REF. VERTICAL VER DISTRIBUCIÓN EN PLANTA \W3.27835; GRAPA No2 ALTERNA CON REF. HORIZONTAL REF. HORIZONTAL No2 @ 0.40 MÁXIMO BLOQUE DE CONCRETO 0.15x0.20x0.40 REF. HORIZONTAL No2 @ 0.40 MÁXIMO BLOQUE BLOQUE BLOQUE ESC. 1:15 \W5.42425; UNIONES T\U+00CDPICAS DE PAREDES \W7.29611; GRAPA No2 \W7.98969; INTERCALADA CON \W7.41982; REFUERZO \W9.41323; HORIZONTAL REFUERZO VERTICAL \W5.12545; REFUERZO \W5.12545; VERTICAL GRAPA No2 INTERCALADA CON REFUERZO HORIZONTAL REFUERZO VERTICAL \W3.31787; GRAPA No2 INTERCALADA CON \W6.78265; REFUERZO HORIZONTAL ESC. 1:25 \W7.12151; DETALLE DE UNIONES DE PAREDES

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, axonometric, betonsteine, block, concrete block, DETAIL, details, DWG, specifications, typical, unions, walls
