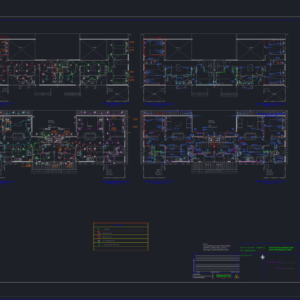

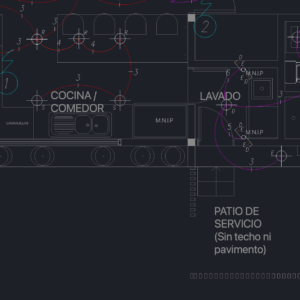

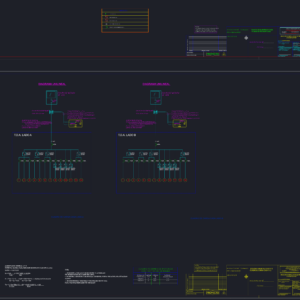

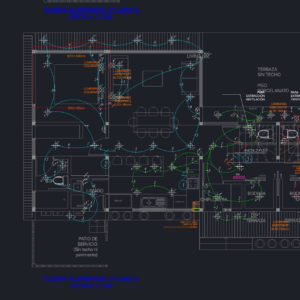

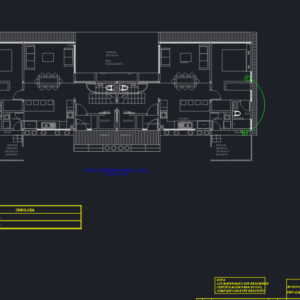

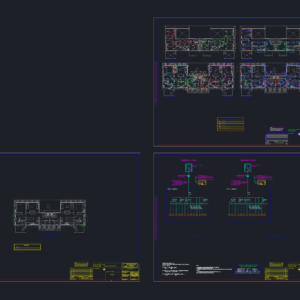

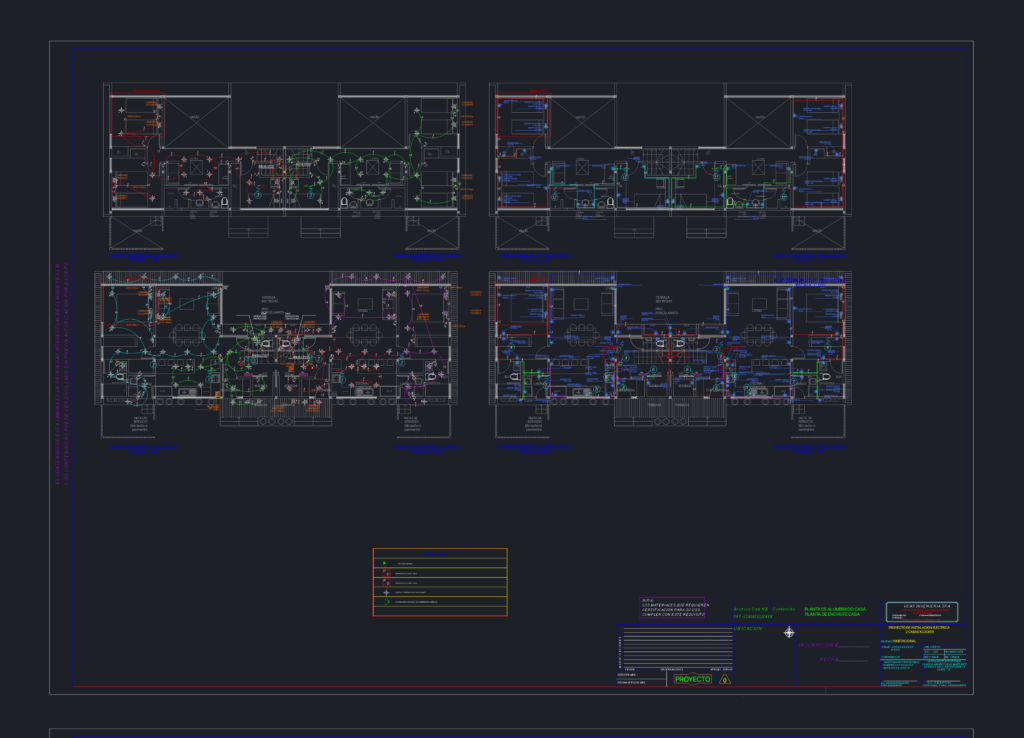

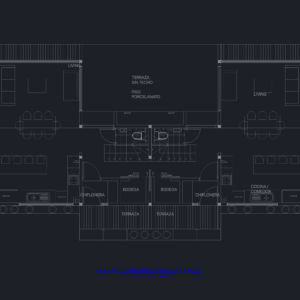

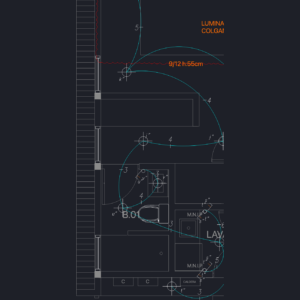

Electrical installation project for a 2-unit residential complex designed under SEC standards. Features complete lighting, power, and weak current floor plans at 1:100 scale, including detailed load schedules and single-line (unilineal) diagrams for T.D.A. Lado A & B. Specifications cover circuit distribution for wet areas, specific mounting heights for double GPOs (h:40cm to 180cm), and luminaire arbotante details throughout the living and service areas.
VEAS INGENIERIA SPA 2 Casas Klocker 9.28kW Residential Electrical Project
