Detail Pluvial Grill DWG Detail for AutoCAD

Detail Pluvial Grill DWG Detail for AutoCAD

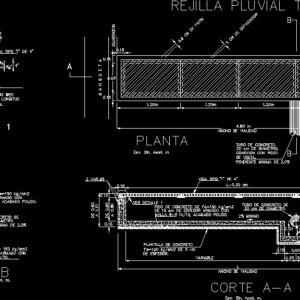

DETAil pluvial grill in street

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

detail no., plant, cut, cut, firm concrete, cm of armed with, electromalla, esc: acot. m., cm diameter, minimum slope of, concrete template, cm, of thickness., guard, concrete tube, cm in diameter., minimum, road width, concrete template, cm, of thickness., concrete floor of, cm thick armed with, mesh, polished finish., see detail, variable, beam type of, concrete wall, cm thick armed with, double mesh, polished finish., see detail, minimum, minimum, road width, cm of separation, concrete tube, cm, connection with well, visiting., cm of skate, guard, minimum slope of, concrete tube, with angle anchors of cm of skate, in contramarco frame, steel joist type of angle, grid placed base, beam type of, angle counterframe, running rods, rod with a length of cm., pluvial grid type

Raw text data extracted from CAD file:

DETALLE No. 1 PLANTA CORTE A-A 10 15 15 CORTE B-B FIRME DE CONCRETO f'c= 150 kg/cm2 DE 10 cm DE ESPESOR, ARMADO CON ELECTROMALLA 6x6 - 10/10. 60 90 A A B B Esc: Sin, Acot. m. Esc: Sin, Acot. m. Esc: Sin, Acot. m. 30 cm DE DIAMETRO PENDIENTE MINIMA DE 2.0% PLANTILLA DE CONCRETO f'c=100 kg/cm2 DE 5 cm DE ESPESOR. 15 40 DE 0.60 A 0.80 20 0.15 0.15 0.15 0.10 DE 0.90 B A N Q U E T A 0.15 0.60 0.15 GUARDICION TUBO DE CONCRETO DE 30 cm DE DIAMETRO. 2 % MINIMO L-0.30 cm L ANCHO DE VIALIDAD PLANTILLA DE CONCRETO f'c=100 kg/cm2 DE 5 cm DE ESPESOR. PISO DE CONCRETO DE f'c=150 kg/cm2 DE 15 cm DE ESPESOR ARMADO CON MALLA 6-6 , ACABADO PULIDO. VER DETALLE 1 VARIABLE VIGA TIPO "I" DE 4" MURO DE CONCRETO DE f'c=150 kg/cm2 DE 15 cm DE ESPESOR ARMADO CON DOBLE MALLA 6-6 , ACABADO PULIDO. VER DETALLE No.1 0.15 0.15 0.30 0.60 0.30 0.20 MINIMO 0.30 L/4-0.30 cm 2 % MINIMO 0.10 0.15 4.80 m ANCHO DE VIALIDAD 5 CM DE SEPARACION TUBO DE CONCRETO 30 cm DE DIAMETRO, CONEXION CON POZO DE VISITA. 1.20m 1.20m 6.8 CM DE PATIN GUARDICION 1.20m 1.20m 0.90 0.15 PENDIENTE MINIMA DE 2.0% 10/10 10/10 A 1.10 DE 0.60 A 0.80 2 VAR.#3 2 VAR.#3 5 15 5 TUBO DE CONCRETO DE CON ANCLAS DE ANGULO DE 4"x4"6.8 CM DE PATIN DE 4"x4"x " EN MARCO Y CONTRAMARCO VIGUETA DE ACERO TIPO "I" DE 4", ANGULO 5/16 REJILLA COLOCADA A 45° A BASE DE VIGA TIPO "I" DE 4" \A1;MARCO Y CONTRAMARCO DE ANGULO DE 4" x 4" x \S5#16;" 2 VARILLAS #3 CORRIDAS \A1;\S5#16;" \A1;\S5#16;" VARILLA #3 @20 CON UNA LONGITUD DE 10 cm. 4" REJILLA PLUVIAL TIPO

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	abwasserkanal, autocad, banhos, casa de banho, DETAIL, DWG, fosse septique, grill, mictório, plumbing, pluvial, sanitär, Sanitary, sewer, street, toilet, toilette, toilettes, urinal, urinoir, wasser klosett, WC
