Details Of Surface Foundations DWG Detail for AutoCAD

Foundation – Passage of pipes

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

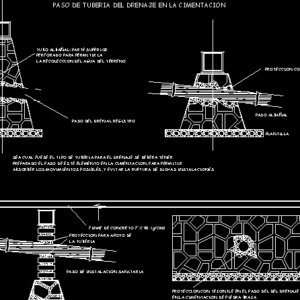

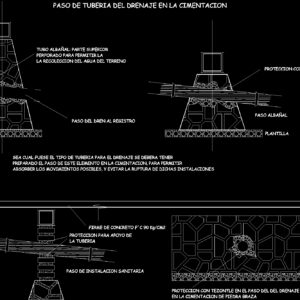

Absorb the movements avoiding the rupture of said installations, Prepared the passage of this element in the to allow, Irrespective of the type of drainage pipe,, Firm concrete, Sanitary installation step, Protection for, Drain step to log, The collection of ground water, Drainage pipe passage in the foundation, The pipe, Sewer pipe, Perforated to allow the, Sewer pipe: top, In the foundation of breaststroke, Protection with tezontle in the drainage passage, Tezontle filler protection, template, Passage to the basin

Raw text data extracted from CAD file:

ABSORBER LOS MOVIMIENTOS POSIBLES, Y EVITAR LA RUPTURA DE DICHAS INSTALACIONES PREPARADO EL PASO DE ESTE ELEMENTO EN LA CIMENTACION, PARA PERMITIR SEA CUAL FUESE EL TIPO DE TUBERIA PARA EL DRENAJE SE DEBERA TENER FIRME DE CONCRETO F´C 90 Kg/CM2 PASO DE INSTALACION SANITARIA PROTECCION PARA APOYO DE PASO DEL DREN AL REGISTRO LA RECOLECCION DEL AGUA DEL TERRENO PASO DE TUBERIA DEL DRENAJE EN LA CIMENTACION LA TUBERIA TUBO ALBAÑAL PERFORADO PARA PERMITIR LA TUBO ALBAÑAL: PARTE SUPERIOR EN LA CIMENTACION DE PIEDRA BRAZA PROTECCION CON TEZONTLE EN EL PASO DEL DEL DRENAJE PROTECCION CON RELLENO TEZONTLE PLANTILLA PASO ALBAÑAL

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
