Metal Ties DWG Block for AutoCAD

Metal Ties DWG Block for AutoCAD

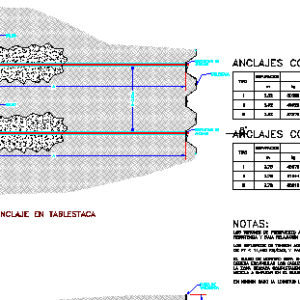

Tipic anchor metal ties

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

free length, bulb length, sheet pile, anchoring device, anchor, anchoring device, the prestressing strands used will be of the high strength low relaxation type with a final effort the allowable tension efforts will be for the design charge of ft for the test load of ft the mortar bulb will be a mixture of portland cement grout should encapsulate The prestressing cables fill the perforation in the indicated area completely. the contractor shall specify the type of pipeline the mixture to be used in it as well as the anchoring devices. in no case will the free length be less than meters., required, strands, required, strands, kind, separation, tension of, iii, design, anchors with separation, notes:, design, iii, tension of, separation, kind, cut, esc:, plant type of anchorage in sheet piling

Raw text data extracted from CAD file:

\A1;Lu Longitud libre (mínimo 5m) \A1;Lb Longitud de bulbo \A1;\U+03B1 \A1;A \A1;A \A1;A \A1;S=2.52m \A1;1.5 m \A1;PUNTA DE TABLESTACA 3881.549004247441 3881.549004247441 DISPOSITIVO DE ANCLAJE 3881.549004247441 \A1;BULBO \A1;TABLESTACA \A1;DISPOSITIVO DE ANCLAJE \A1;BULBO DISPOSITIVO DE ANCLAJE 3881.549004247441 3881.549004247441 3881.549004247441 3881.549004247441 3881.549004247441 LOS TORONES DE PRESFUERZO A UTILIZAR SERAN DEL TIPO DE ALTA RESISTENCIA Y BAJA RELAJACIÓN CON UN ESFUERZO ULTIMO FY=19,000 KG/CM2. LOS ESFUERZOS DE TENSION ADMISIBLES SERAN PARA LA CARGA DE DISENO DE FT < 11,400 KG/CM2, Y PARA LA CARGA DE PRUEBA DE FT < 15,200 KG/CM2. EL BULBO DE MORTERO SERA UNA MEZCLA DE CEMENTO PORTLAND O GROUT Y DEBERA ENCAPSULAR LOS CABLES DE PRESFUERZO Y LLENAR LA PERFORACIÓN EN LA ZONA INDICADA COMPLETAMENTE. EL CONTRATISTA DEBERÁ ESPECIFICAR EL TIPO DE DUCTO Y LA MEZCLA A EMPLEAR EN EL BULBO, ASI COMO LOS DISPOSITIVOS DE ANCLAJE. EN NINGUN CASO LA LONGITUD LIBRE (LU) SERA MENOR DE 5 METROS. 6 5 3 T15 (5/8") REQUERIDOS TORONES REQUERIDOS T15 (5/8") 4 3 3 TORONES TIPO SEPARACION TENSION DE A LU LB LT m kg ° m m m m I 3.78 45879 25 10 5 6 11 II 3.78 61644 25 11.8 5 8 13 III 3.78 85918 25 14.5 5 11 16 \A1;\U+03B1 DISEÑO 22729 17985 12137 kg/m ANCLAJES CON SEPARACION S=3.78 M ANCLAJES CON SEPARACION S=2.52 M kg/m 12137 17985 22729 NOTAS: DISEÑO \A1;\U+03B1 13 8 5 11.8 25 57279 2.52 III 11 6 5 10.0 25 45323 2.52 II 9 4 5 8.2 25 30586 2.52 I m m m m ° kg m LT LB LU A TENSION DE SEPARACION TIPO B' B CORTE B-B' ESC: S/E ESC: S/E PLANTA TIPO DE ANCLAJE EN TABLESTACA

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	anchor, autocad, base, block, DWG, FOUNDATION, foundations, fundament, metal, ties
