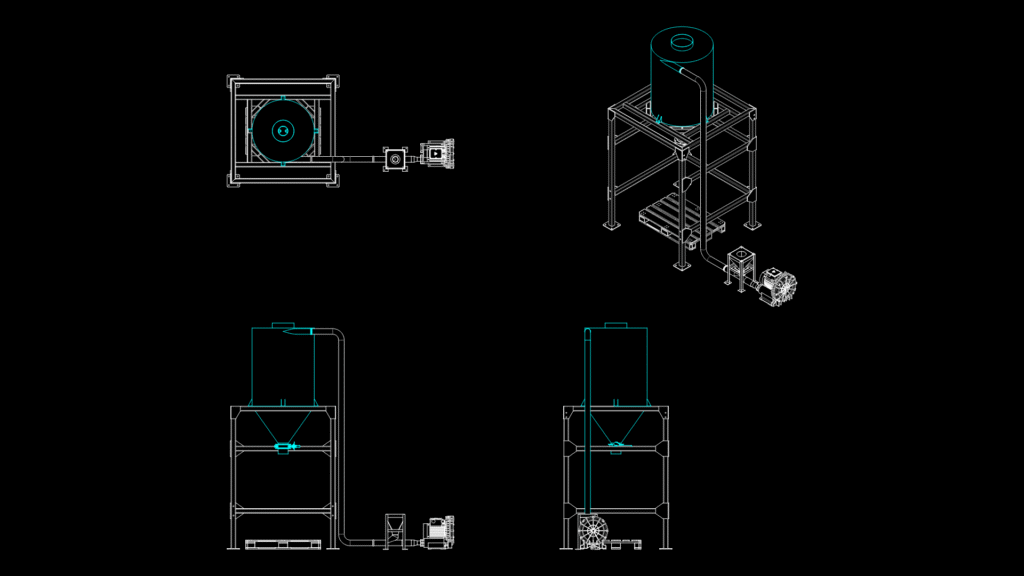

This technical drawing depicts a comprehensive 1000-liter automated bulk material loading system with integrated pump assembly. The system features a cylindrical storage tank mounted on a steel support frame with multiple access levels. The main components include a hopper-style discharge mechanism with flow control valve, connected via piping to a dedicated pump unit for material transfer operations. The design incorporates four distinct views showing top, front, side, and isometric perspectives, allowing for complete spatial understanding of the assembly. The frame construction utilizes structural steel members with cross-bracing for stability under full load conditions. Piping connections are standardized with appropriate flanges for maintenance access. The pump assembly appears to be a positive displacement type, suitable for viscous materials or slurries. A notable design consideration is the elevated tank position, which allows for both gravity-assisted flow and pressurized discharge—providing operational flexibility depending on material properties. The system’s compact footprint optimizes floor space while maintaining accessibility for maintenance.
1000L Bulk Material Loading System with pump Integration
