3300mm CNC and EDM Electrode Storage Rack

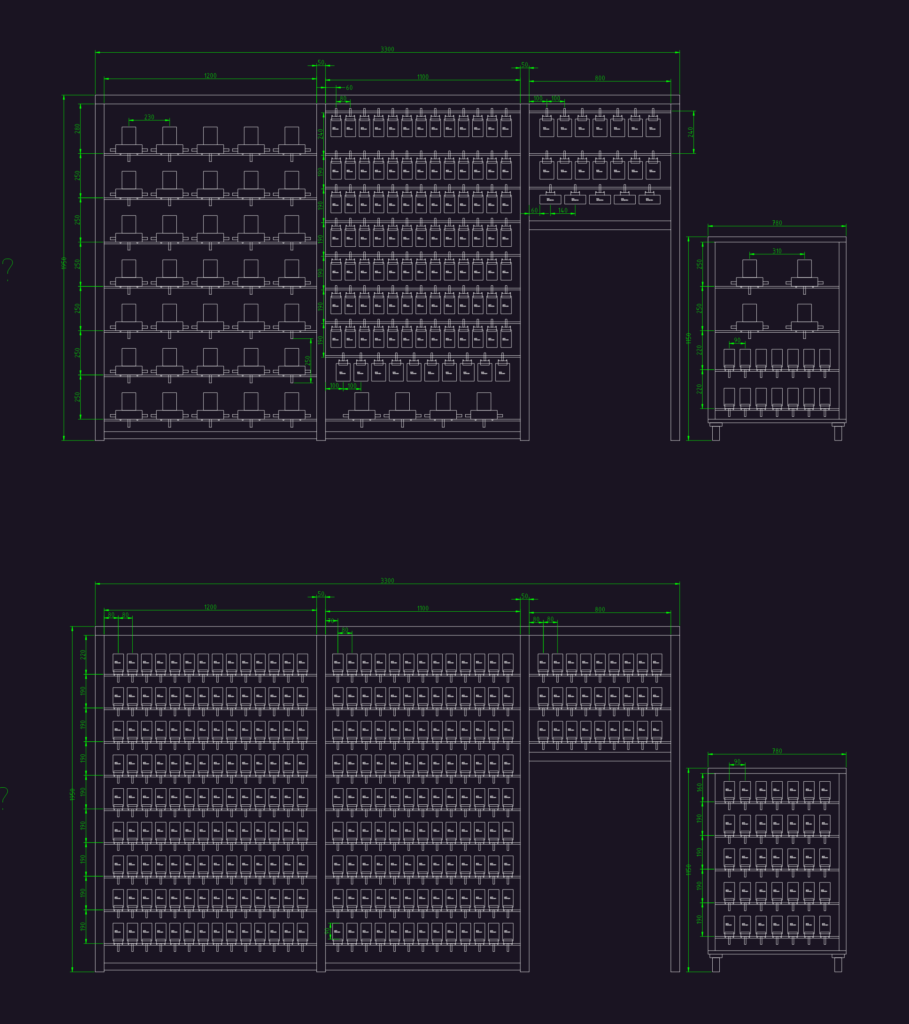

CAD elevation of CNC and EDM electrode storage racks with detailed dimensions for tool organization.

Rack designs for CNC and EDM electrode storage. We’ve got a large 3300mm wide unit and a smaller 780mm mobile one. Layouts show specific spacing for A, B, and C type electrodes in sizes like 60×60, 80×80, and 120×120. CNC/EDM料架图纸，包含A、B、C型电极位。

FREE

File Details

File Type
DWG
Type
Detail
Language
Chinese
Materials
Steel
Units
Metric
Area
10 – 49 m² (107.6 – 527.4 ft²)
Uploaded by
CAD Corner
Category
Commercial, Industrial
Published
Jun 12, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

cnc storage edm electrode electrode holder factory layout industrial rack tool storage dwg toolroom storage workshop furniture
