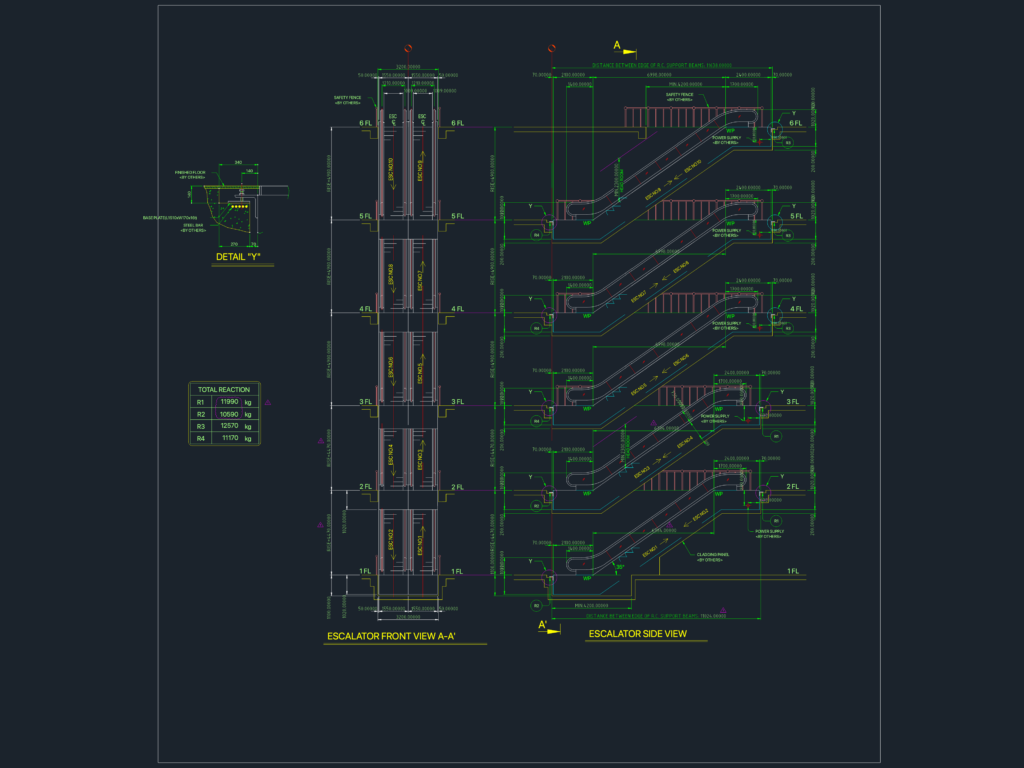

Escalator side & front elevations spanning levels 1 through 6. 35° incline with headroom, cladding, and base plate detail “Y” (16t plate). includes structural reaction loads (up to 12570 kg) and power supply locations
35° Escalator Elevation with Structural Reaction Loads
