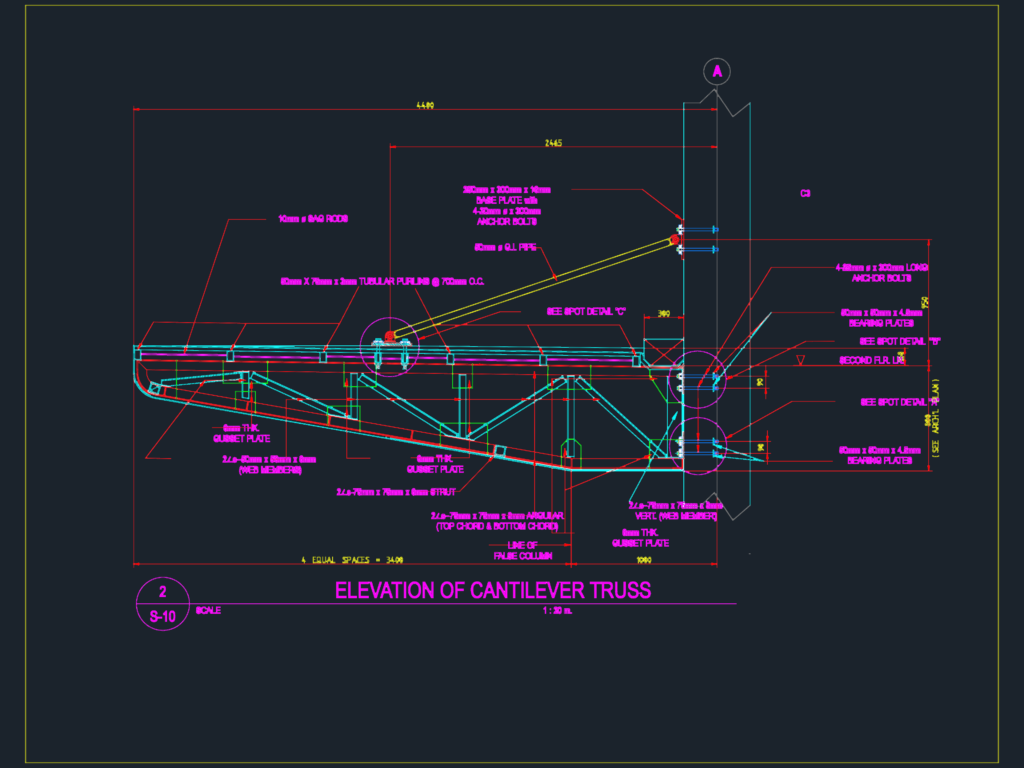

Elevation of a steel cantilever truss at 1:20 scale. We’ve included specs for the 75mm x 75mm angular chords, 10mm sag rods, and 6mm gusset plates. It also covers the column connection with anchor bolt and base plate callouts for canopy or roof overhang projects.
75mm Angular Chord Cantilever Truss Elevation
