Absorbent Ditch DWG Detail for AutoCAD

Absorbent Ditch DWG Detail for AutoCAD

Zanaja of abosorcion for sewage – Details – specifications – sizing

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

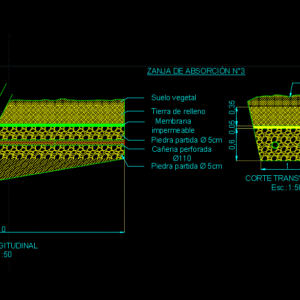

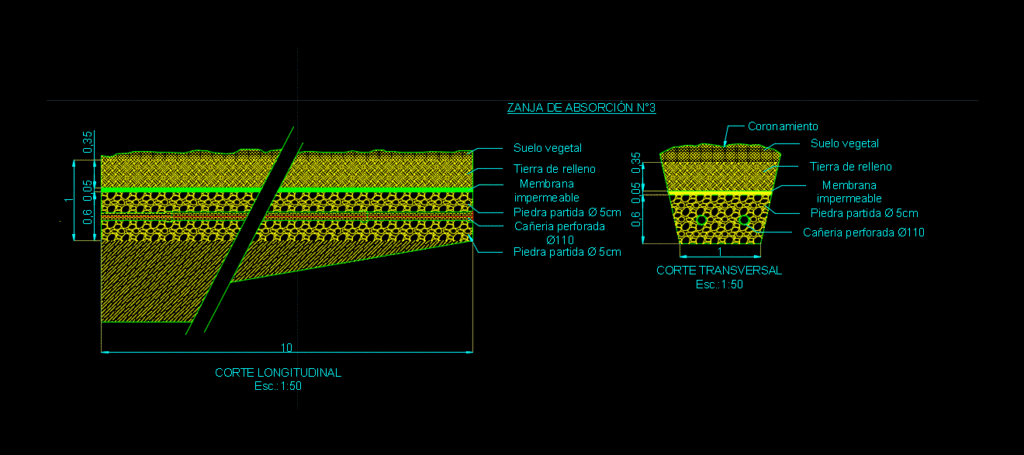

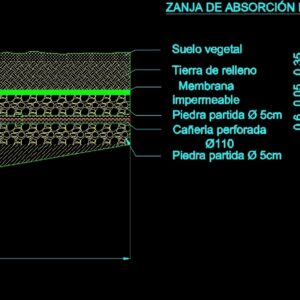

Longitudinal cut, cross-section, Absorption ditch absorption

Raw text data extracted from CAD file:

1 10 0,35 0,05 0,6 0,35 0,05 0,6 1 10 5 5 5 5 \W0.42960; CORTE LONGITUDINAL \W0.42960; Esc.:1:50 5 5 5 5 \W0.52882; CORTE TRANSVERSAL \W0.52882; Esc.:1:50 \W3.84863; ZANJA DE ABSORCIÓN N°3DE ABSORCIÓN N°3
