Armor Set 3D DWG Model for AutoCAD

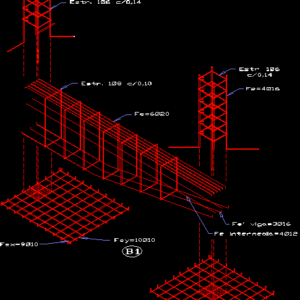

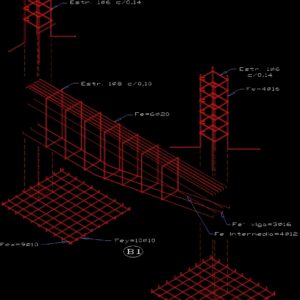

Set frame 3d. Includes shoe-centered and eccentric, bond beam and columns.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

estr., estr., faith’, estr.

Raw text data extracted from CAD file:

Estr. 1d6 c/0,14 Fe=4d20 Estr. 1d8 c/0,10 Fe=6d20 Fe’ viga=3d16 Estr. 1d6 Fe=4d16 Fe intermedia=4d12 Fex=9d10 Fey=10d10 Fex=9d10 Fey=9d10 B1 B2 c/0,14
