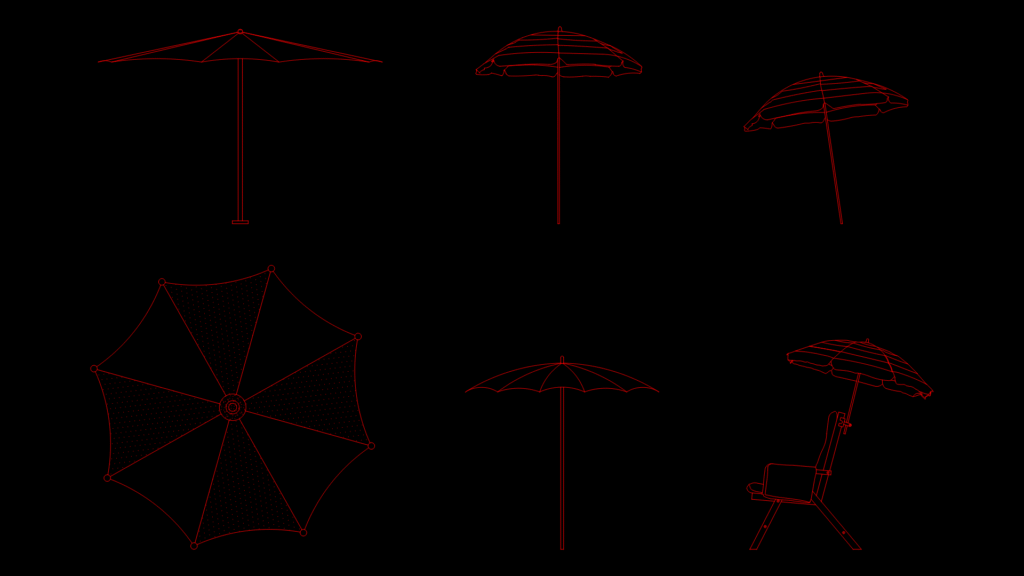

This CAD block set features five distinct beach umbrella design variants shown from different perspectives. The collection includes side elevation views of various umbrella configurations, one complete top view showing the umbrella’s radial structure with 8 panels, and one umbrella integrated with a beach chair. The umbrella poles range from approximately 1500-2000mm in height, with canopy diameters varying between 1800-2200mm depending on the model. Each umbrella design incorporates standard tilt mechanisms and reinforced pole-to-canopy connections. The top view clearly illustrates the spoke-and-panel construction method typical in portable shade structures, while the side elevations show different canopy curvature profiles – from flatter designs optimized for wind resistance to more domed versions maximizing shade coverage. The chair-umbrella combo unit demonstrates practical integration of shade with seating, featuring an adjustable umbrella mount that can be repositioned based on sun angle. All elements are designed in millimeter scale for accurate implementation in site planning, outdoor furniture layouts, or recreational area designs.
Beach Umbrella Design Block Set with Multiple perspective Views
