Beams DWG Block for AutoCAD

Connection steel beams with same height

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

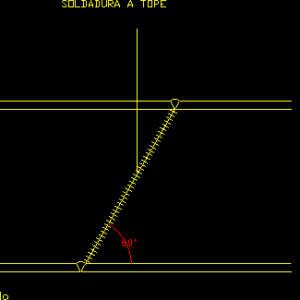

raised, Welding stop, Splicing of beams of equal height

Raw text data extracted from CAD file:

1/4 a 1/8L L H \A1;60.0° \A1;H \A1;L \A1;1/4 a 1/8L Alzado H 5 L 1/4 a 1/8L SOLDADURA A TOPE EMPALME DE VIGAS DE IGUAL ALTURA
