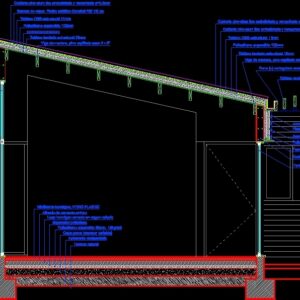

Construction Details – Wood Ceiling

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

coating, dry wood, vapor barrier. dynaflex asphalt felt, expanded polystyrene, string concrete according to calculation, pre-painted steel gutter liner, thermopanel window, smooth riveted embossed cover, vapor barrier. asphalt felt dynafoil laugh, structural osb board, expanded polystyrene, xxxxxxxxxxxxxxxxxx, extruded tertiary board, dry brushed pine beam, smooth riveted embossed cover, structural osb board, expanded polystyrene, structural tertiary board, galvanized steel gutter liner, xxxxxxxxxxxxx, dry brushed wood piece, asphalt membrane barrier lbs, expanded polystyrene, galvanized steel slipper liner, string concrete according to calculation, dry brushed pine beam, structural tertiary board, Vitro plastic vitrifier, cement tuning, reinforced concrete slab according to calculation, polyethylene separator, expanded polystyrene, gravel layer, compacted ramming, natural terrain, thermopanel window, compacted ramming, gravel, embossed, calculation, waterproofing paint, natural terrain

Raw text data extracted from CAD file:

Revestimiento \A1;Pieza madera pino,cepillado seco 1 1/2" x 5" Barrera de vapor. Fieltro asfáltico DynaFLEX 15Lbs. Poliestireno expandido 10mm. 10kg/m3. Cadena hormigon armado, segun calculo Forro cortagotera acero prepintado e=0.6mm Ventana de termopanel Cubierta zinc-alum lisa emballetada y remachada e=0.5mm Barrera de vapor. Fieltro asfáltico Dynafoil RIE 15Lbs. Tablero OSB estructural 11mm Poliestireno expandido 100mm xxxxxxxxxxxxxxxxxx Tablero terciado extructural 18mm Viga de madera, pino cepillado seco 2 x 8" Cubierta zinc-alum lisa emballetada y remachada e=0.5mm Cubierta zinc-alum lisa emballetada y remachada e=0.5mm Tablero OSB estructural 11mm Poliestireno expandido 100mm Tablero terciado estructural 18mm Forro (x) cortagotera acero galvanizado e=0.5mm xxxxxxxxxxxxx Pieza madera pino, cepillado seco 1 1/2" x 5" Barrera de vapor, membrana asfaltica 15 Lbs Poliestireno expandido 100mm. 15 kg/m3 Forro (x) cortagoteras acero galvanizado e=0.5mm Cadena hormigon armado, segun calculo Viga de madera, pino cepillado seco 2 x 8" Tablero terciado estructural 18mm Vitrificante hormigon, VITRO PLASTIC Afinado de cemento e=4cm Losa hormigon armado e= segun calculo Separador polietileno Poliestireno expandido 50mm. 15kg/m3 Capa grava (espesor variable) Apisonado compactado Terreno natural Ventana termopanel Apisonado compactado Gravilla e=5cm Emplantillado Cimiento,segun calculo Sobrecimiento,segun calculo Pintura impermeabilizante Terreno natural

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Plastic, Steel, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, ceiling, construction, construction details section, cut construction details, DETAIL, details, DWG, Wood
