Covintec – Constructive System DWG Block for AutoCAD

Anchoring of panels and space trusts of union putting in place – Covintec

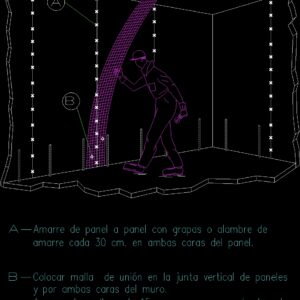

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

panel panel tie with wire staples, tie each cm. on both sides of the panel., place mesh in the vertical panel joint, on both sides of the wall., tie the mesh each with wire staples, mooring formed a

Raw text data extracted from CAD file:

Amarre de panel a panel con grapas o alambre de amarre cada 30 cm. en ambas caras del panel. Colocar malla de unión en la junta vertical de paneles y por ambas caras del muro. Amarrar la malla cada 15cm. con grapas o alambre de amarre formado un zig-zag. A- B- B A
