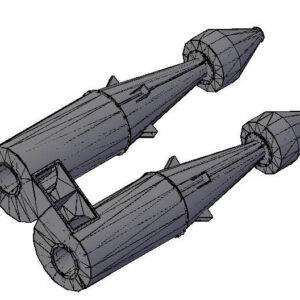

Cyclone 3D DWG Model for AutoCAD

Cyclones that are designed for partial purification of air as well as the recovery of good quality raw material; and to relieve filters from a large quantity of dust. It is used for equipment which is required for air purification because of the high content of dust generated in the production process. Versions are produced with forced air circulation. Cyclone can be used in cement; lime; foundry; steel; road and building materials; chemical industry; in boiler rooms; desulphurization plants; purification perlite; etc.

Language English
Drawing Type Model
Category
Additional Screenshots
File Type dwg
Materials Steel
Measurement Units Metric
Footprint Area
Building Features
Tags , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
