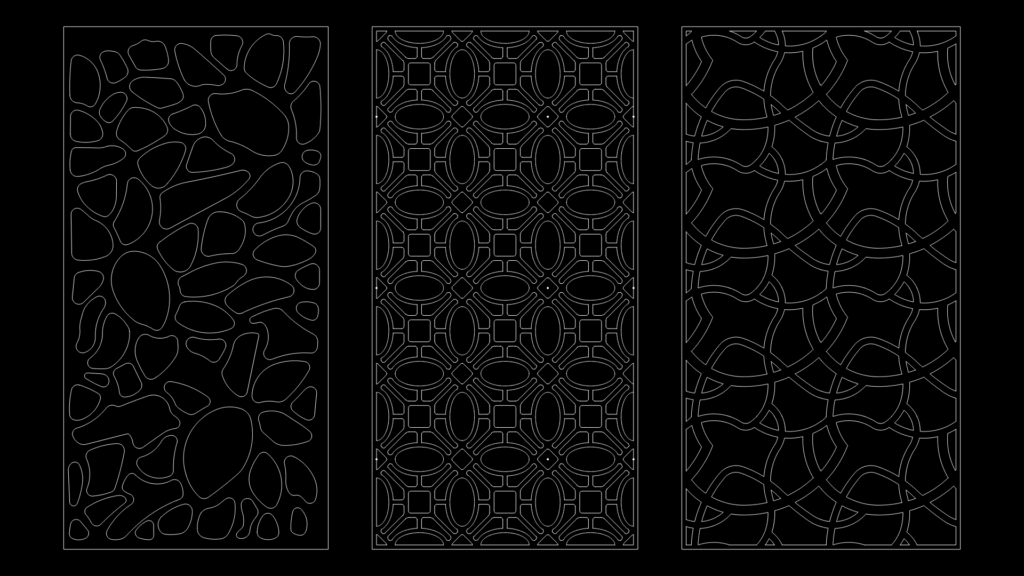

This technical drawing showcases three distinct jaali patterns designed for architectural screens or partitions. The left panel features an organic, stone-like pattern with irregular openings that mimic natural cobblestone arrangements. The center panel displays a formal geometric pattern combining ovals, squares, and circular elements in a repeating grid formation, creating a balanced composition suitable for traditional interiors. The right panel presents an interlacing curvilinear design with continuous flowing lines forming an intricate Celtic-inspired pattern. Each panel maintains consistent border dimensions, measuring approximately 2000mm × 1000mm, making them suitable for standardized architectural applications. The patterns are optimized for CNC cutting with adequate material bridges to maintain structural integrity while allowing for maximum permeability. These designs can be fabricated in various materials including wood, metal, or stone depending on application requirements and desired visual weight.
Decorative Jaali Panel Patterns for Architectural Screens
