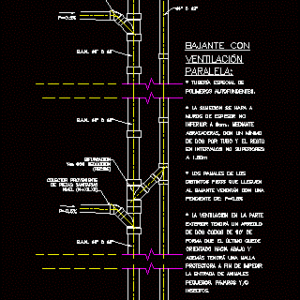

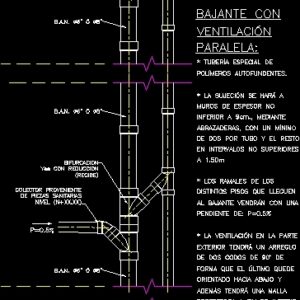

Drain With Parallel Ventilation DWG Block for AutoCAD

Drain With Parallel Ventilation DWG Block for AutoCAD

Downpipe sewage building ventilation ductwork, with parallel ventilation PVC

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

with, mezzanine ceiling, with the same diameter that came down, yee with reduction, from sanitary ware level, yee with reduction, from sanitary ware level, roof finish, protection against insect animal access, waterproofing seal, asphaltic, compression sealer, arrives p.b., floor finish, of registration at the bottom of the drain. the drain is in the extension of the plug to the outside of the

Raw text data extracted from CAD file:

\H0.53333x;\LBAJANTE CON \A1;PLACA DE TECHO Ó ENTREPISO \A1;VENTILA CON EL MISMO DIAMETRO QUE VENIA EL BAJANTE \A1;BIFURCACION Yee CON REDUCCION \A1;COLECTOR PROVENIENTE DE PIEZAS SANITARIAS NIVEL (N+XX.XX) \A1;VENTILACION d6" Ó d8" \A1;d4" Ó d2" \A1;BIFURCACION Yee CON REDUCCION (RECIBE) \A1;COLECTOR PROVENIENTE DE PIEZAS SANITARIAS NIVEL (N+(XX.XX)+1) \A1;NIVEL ACABADO DE TECHO \A1;CODO d4" Ó d6" DE 90° \A1;CODO d4" Ó d6" DE 90° \A1;MALLA PROTECTORA PARA IMPEDIR ACCESO DE ANIMALES Y/O INSECTOS \A1;REMATE DE IMPERMEABILIZACION PARA SELLAR JUNTA \A1;MANTO ASFALTICO \A1;AISLANTE SELLADOR A COMPRESION \A1;VENTILACION d6" Ó d8" \A1;B.A.N. d6" Ó d8" \A1;B.A.N. d6" Ó d8" \A1;B.A.N. d6" Ó d8" \A1;B.A.N. d6" Ó d8" \A1;B.A.N. d6" Ó d8" LLEGA A P.B. \A1;NIVEL ACABADO DE PISO (P.B.) \A1;TAPON DE REGISTRO AL PIE DEL BAJANTE. (SI EL BAJANTE ESTA EN DUCTO, HAY QUE PROLONGAR EL TAPON HASTA LA PARTE EXTERNA DEL DUCTO) \A1;N+±0.00 P=0.5% P=0.5% P=0.5%

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	abwasserkanal, autocad, banhos, block, building, casa de banho, downpipe, drain, ductwork, DWG, fosse septique, mictório, parallel, plumbing, pvc, sanitär, Sanitary, sewage, sewer, toilet, toilette, toilettes, urinal, urinoir, ventilation, wasser klosett, WC
