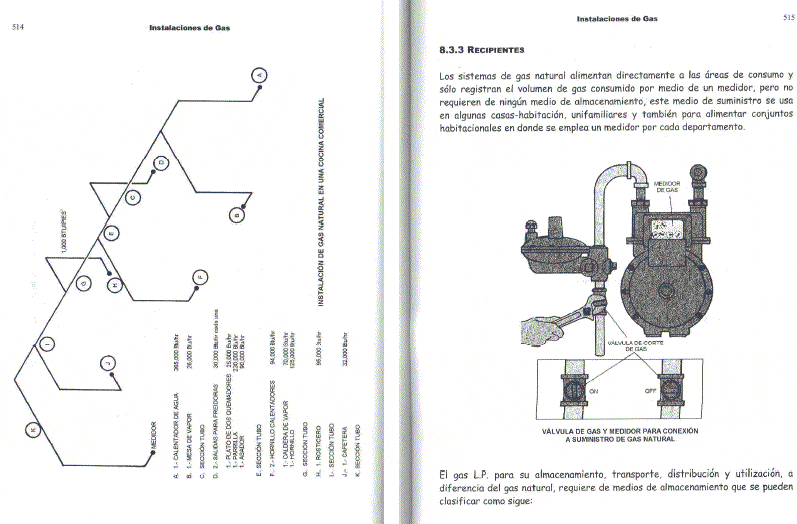

This technical PDF document features a detailed schematic for a commercial kitchen natural gas installation. It includes an isometric diagram mapping the gas line to specific appliances, including a water heater, steam table, fryers, griddles, broilers, and a steam boiler. Each equipment connection is labeled with its corresponding BTU/hr consumption rating for load calculation and pipe sizing.
The manual excerpt also provides a detailed illustration of a natural gas meter assembly and its manual shut-off valve, showing the valve in both open and closed positions. It includes technical text regarding the differences between natural gas supply and LP gas storage requirements. Instalación de gas natural en una cocina comercial.
