This ground floor plan depicts a narrow-lot residential layout measuring 15’3″ × 55’6″. The elongated design maximizes space utilization with a logical flow from front to back. The entry features a 4’6″-wide gate leading to a gallery of the same width, opening into a drawing room (10’2″ × 6’9″). The central portion contains a spacious lobby (9’1.5″ × 20’4.5″) with an integrated staircase (3’3″ wide with 10″ treads and 8″ risers) leading to upper floors. Adjacent to the lobby is a compact kitchen (8’0″ × 4’0″) and a functional toilet (6’1.5″ × 4’0″). The rear section houses a verandah/sitting area (14’6″ × 9’0″) and a bedroom (14’6″ × 10’6″) with an attached open-to-sky area. The plan includes detailed door and window specifications, with door heights standardized at 8’6″ and widths ranging from 2’6″ to 4’6″ for the main gate. The 3’0″-wide projection element adds architectural interest while maintaining the narrow footprint — a practical solution for urban infill lots where frontage is limited.

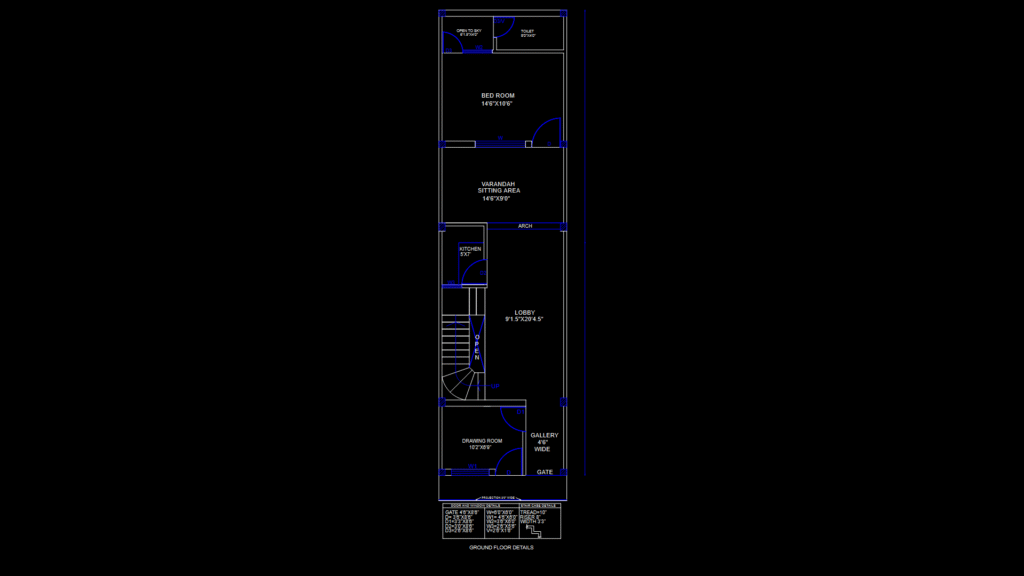

Ground Floor Plan for Narrow Lot Residential House (15’3″×55’6″)
