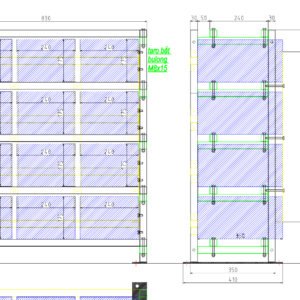

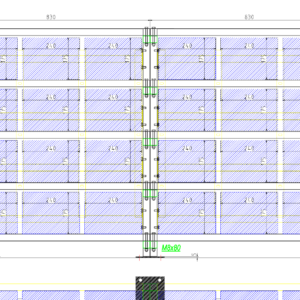

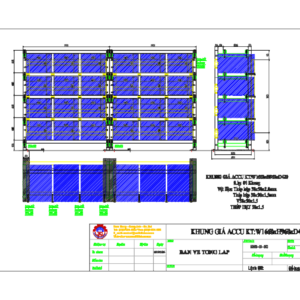

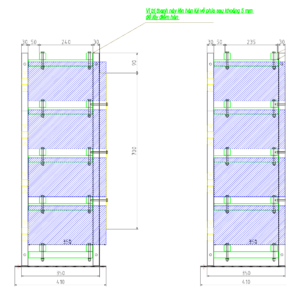

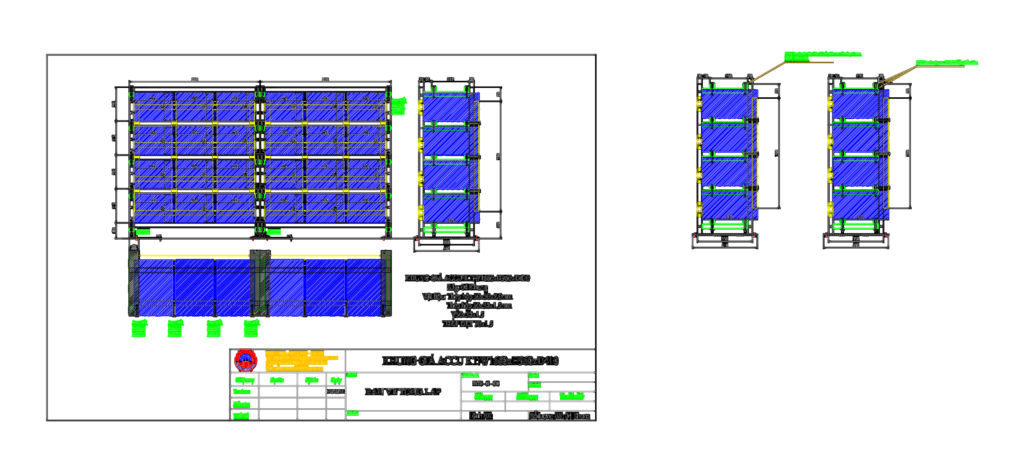

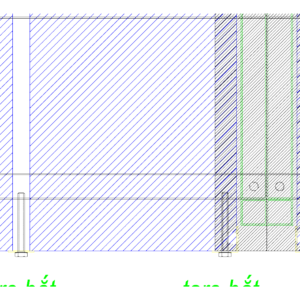

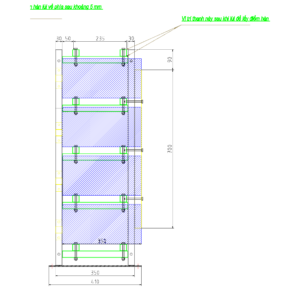

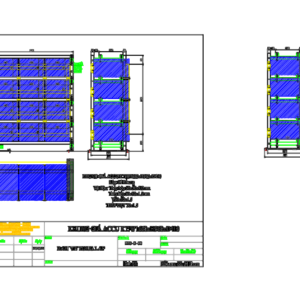

Assembly drawing for an industrial battery storage rack with W1660 x H960 x D410 overall dims. Frame consists of 30×30 mm hollow steel sections (2.0 mm & 1.5 mm thk.) and V30x30x1.5 angle, incl. M8 and M6 bolting specs
Industrial battery rack frame assembly with material specifications
