Lighting installation – Detail with technical specifications – Lighting to embedded

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

gypsum panel, registration box, luminary, flexible tube, connector for, flexible tube, crossbar, conduit tube, galvanized, plaster pannel, lighting fitting, flexible conduit, galvanized conduit, hanger, register box, flexible conduit connector, lighting type, type and lighting fitting

Raw text data extracted from CAD file:

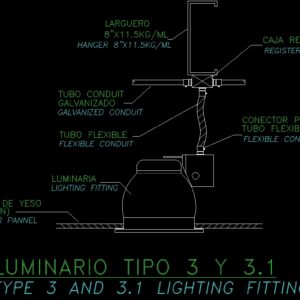

- X 1'-0" = 1'-0" X (PLAFON) PANEL DE YESO CAJA REGISTRO LUMINARIA TUBO FLEXIBLE CONECTOR PARA TUBO FLEXIBLE LARGUERO 8"X11.5KG/ML TUBO CONDUIT GALVANIZADO PLASTER PANNEL LIGHTING FITTING FLEXIBLE CONDUIT GALVANIZED CONDUIT HANGER 8"X11.5KG/ML REGISTER BOX FLEXIBLE CONDUIT CONNECTOR LUMINARIO TIPO 3 Y 3.1 7 TYPE 3 AND 3.1 LIGHTING FITTING
