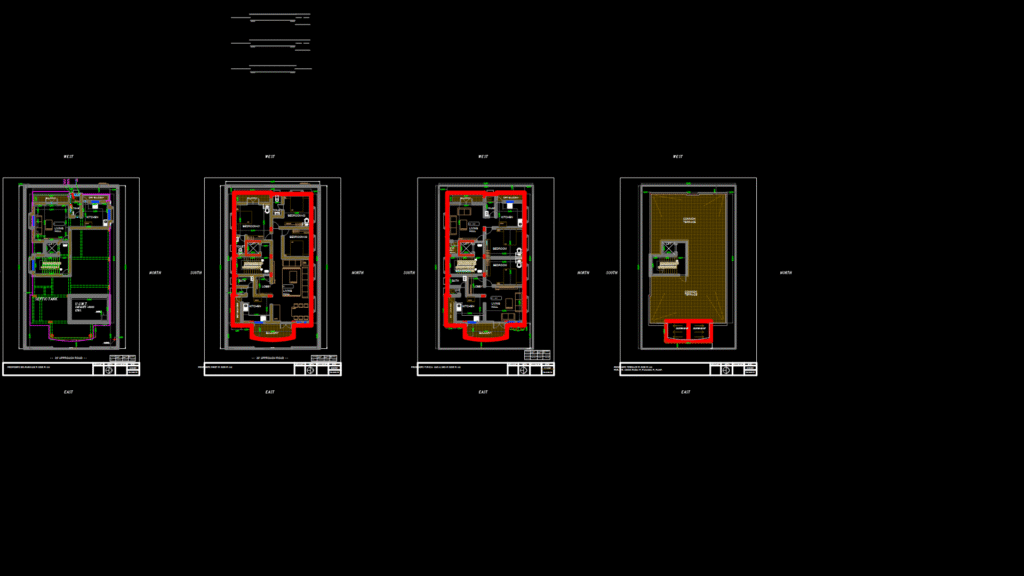

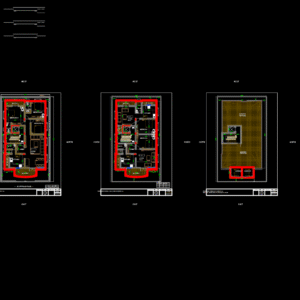

Comprehensive floor plans for a four-story residential apartment building featuring 2BHK and 3BHK configurations. The drawing includes ground/parking floor, typical floor plans for 1st, 2nd, and 3rd floors, and terrace layout. Each unit showcases detailed interior spaces including living halls (4.5m x 3.7m approx.), bedrooms (3.0m x 3.0m typical), kitchen (2.4m x 2.0m) and bathrooms. The plans integrate MEP systems with clearly marked plumbing lines (50mm waste pipes, 100mm soil pipes) and specified water supply infrastructure including a 9000L underground water tank and borewell. Each apartment features balconies (both standard and optional dry balconies) with strategic positioning for natural ventilation. The building footprint measures approximately 19.36m x 9.17m (63′-6″ x 30′-1″) with access from a 20′ approach road. Notably, the design incorporates standardized furniture layouts and sanitary fixtures that optimize spatial functionality within compact floor plates.
Multi-Floor Residential Apartment Plan with MEP Systems
