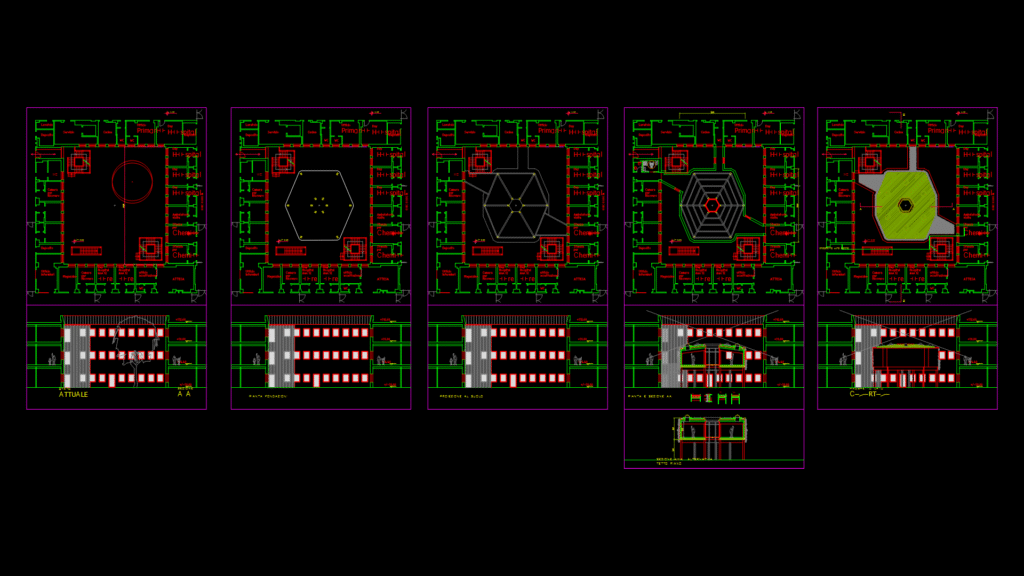

Comprehensive floor plan for a multi-level commercial building featuring a distinctive hexagonal central courtyard. The design includes multiple residential or office units arranged around the perimeter with a symmetrical layout. Each floor appears to have approximately 20-25 units with dedicated bathroom facilities indicated by bathroom fixture blocks (bidets, WCs, showers). The central courtyard transitions through various design iterations in the drawing, from a simple circular space to a detailed hexagonal garden area with landscaping elements. Cross-sections show at least two levels with structural elements clearly delineated. Key features include:
– Central hexagonal courtyard measuring approximately 15-20 meters across
– Peripheral units with standardized bathroom configurations
– Accessible facilities indicated by dedicated symbols
– Multiple building sections showing structural relationships
– Systematic circulation pattern around the central feature
– Green space integration in the courtyard area
– Structural grid system utilizing concrete framework
