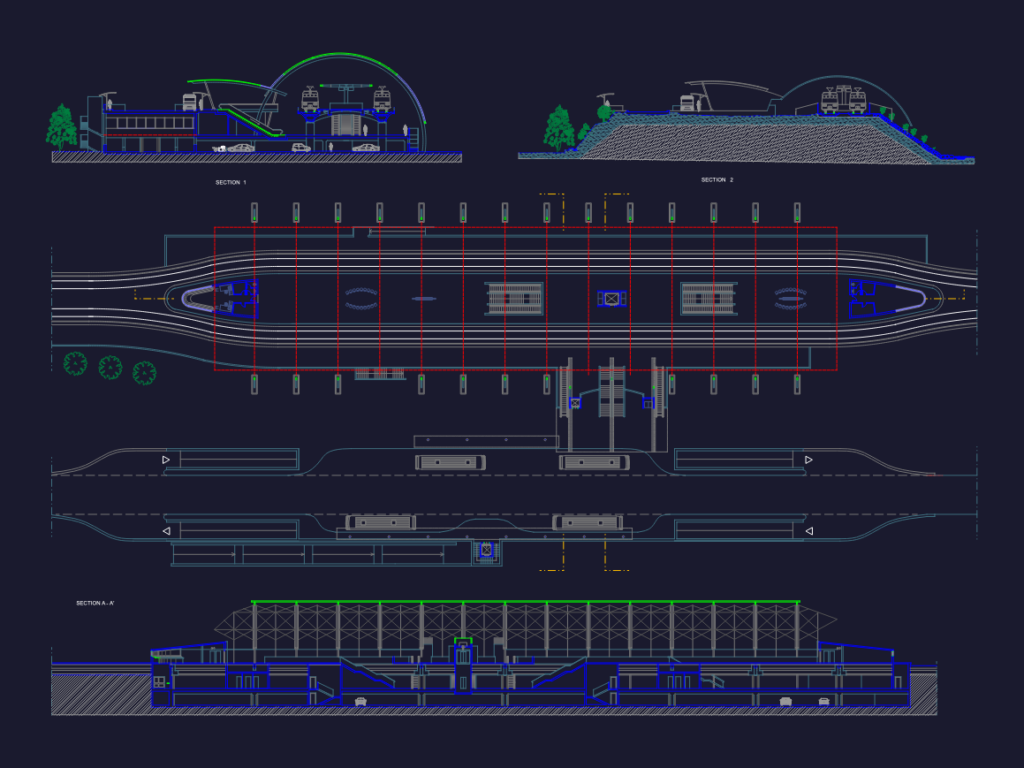

Architectural GA for a multi-modal transit hub with integrated rail platforms and subterranean parking. Includes platform plams, bus terminal layout, cross-sections (Sec. 1 & 2), and a full longitudinal section (Sec. A-A’) showing steel roof trusses and vertical circulation. RC base structure with lightweight canopy; details for escalators, stairs, and car parking bays are included.
Multi-Level Metro Station Architectural Plan and Section Set
