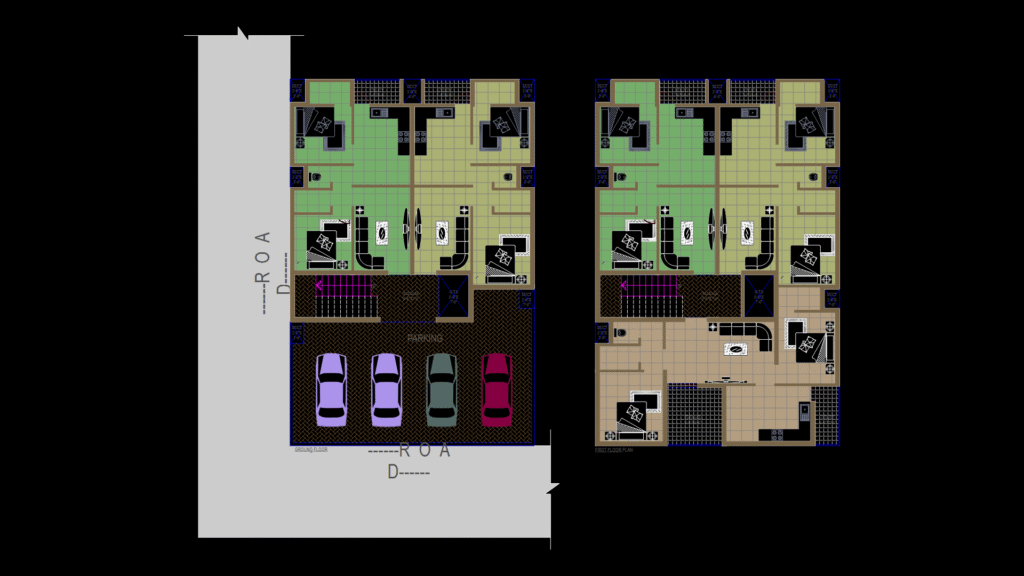

This architectural drawing depicts ground and first floor plans for a multi-unit residential development. This layout features two mirror-image apartment units on the ground floor, each containing a kitchen/dining area (9′-2″×12′-9″), living room (9′-2″×13′-6″), two bedrooms (9′-3″×9′-0″ and 9′-3″×10′-0″), utility room (7′-6″×4′-0″), bathroom (5′-9″×3′-6″), and WC (3′-6″×3′-6″). Vertical circulation is provided via stairs marked “UP”. The first floor continues with a similar mirrored layout plus a larger unit featuring a more spacious living room (17′-9″×10′-0″) and terrace (9′-0″×9′-6″). The complex includes a designated parking area accommodating 4 vehicles with direct road access. Service ducts (typically 2′-3″×3′-6″) are strategically positioned throughout the floor plans to facilitate MEP systems. Each unit employs an efficient circulation pattern with minimal hallway space; bathrooms and WCs are sensibly clustered around plumbing ducts to optimize installation costs and maintenance access.
Multi-Unit Residential Floor Plans with Parking Infrastructure
