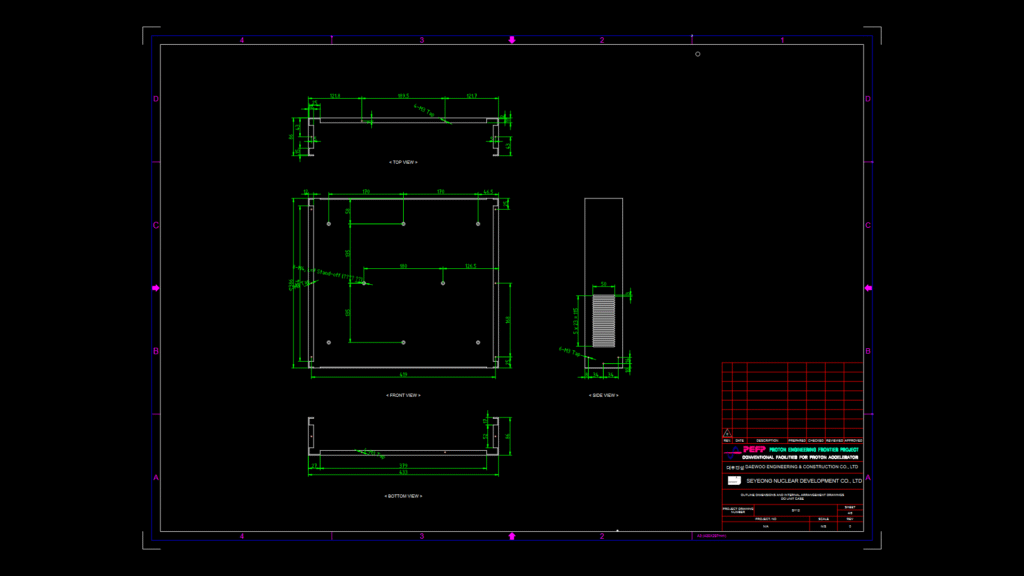

Detailed fabrication drawing of a DO Unit Case for a particulate detector lead shield in nuclear applications. The enclosure features 2mm thick aluminum construction with Munsell No. 5Y 7/1 finish.
Key Specifications:
– Overall dimensions: approximately 235mm × 235mm × 55mm
– Multiple mounting provisions including:
• 6 M3 threaded holes
• 4 M3 threaded holes
• 8 M4 standoffs with 7mm length
– Drawing includes four standard views (top, front, side, and bottom) with precise dimensional callouts
– Designed for nuclear detection equipment with specific mounting pattern for internal components
The case serves as a protective housing for sensitive detection equipment in radiation monitoring systems, with mounting provisions positioned to secure internal electronics while maintaining proper shielding integrity.
