Pipe Bridge 10m long 1m wide 5.4m clearance
ADVERTISEMENT
ADVERTISEMENT

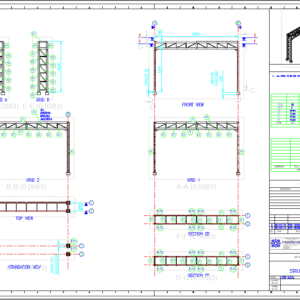

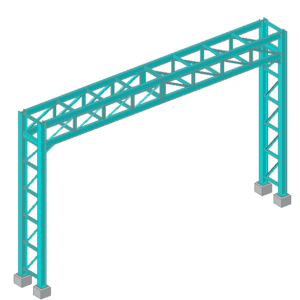

Pipe bridge has both the model and the Structural layout drawing with BOQ. About 10 long, 1m wide and 5,4m clearance.
| Language | English |
| Drawing Type | Full Project |
| Category | Industrial |
| Additional Screenshots |
 |
| File Type | dxf |
| Materials | Steel |
| Measurement Units | Metric |
| Footprint Area | 1 - 9 m² (10.8 - 96.9 ft²) |
| Building Features | |
| Tags | industrial, Pipe Bridge |
