Polished Concrete Floor DWG Section for AutoCAD

Polished Concrete Floor DWG Section for AutoCAD

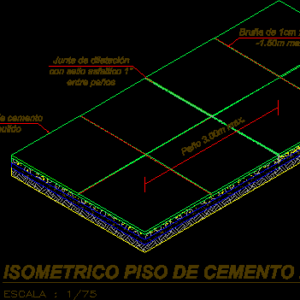

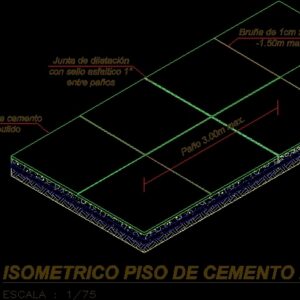

CONSTRUCTIVE DETAIL OF POLISHED CONCRETE FLOOR ;LAYERS AND THICKNESS OF EACH (VIEWS IN SECTION AND ISOMETRIC).

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

max, max, polished cement floor, expansion joint with asphalt seal, worm of max., polished cement floor, scale, polished cement, false concrete floor, natural terrain, asserted from, polished cement floor, scale, polished cement floor, expansion joint with asphaltic seal between cloths, worm of max., max cloth

Raw text data extracted from CAD file:

\A1;3.00 max. \A1;.15 \A1;.15 3.00 max. 5 5 Piso de cemento pulido Junta de dilatación con sello asfaltico 1" Bruña de 1cm x 1cm -1.50m max. \LDETALLE "A"- PISO DE CEMENTO PULIDO ESCALA : 1/20 Cemento pulido 2" Falso piso 4" de concreto 1:8 Terreno natural Afirmado de 4" \LISOMETRICO PISO DE CEMENTO PULIDO ESCALA : 1/75 Piso de cemento pulido Junta de dilatación con sello asfaltico 1" entre paños Bruña de 1cm x 1cm -1.50m max. Paño 3.00m max.

Language	N/A
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	assoalho, autocad, concrete, constructive, deck, DETAIL, DWG, fliese, fließestrich, floating floor, floor, flooring, fußboden, holzfußboden, isometric, layers, piso, plancher, plancher flottant, polished, section, thickness, tile, views
