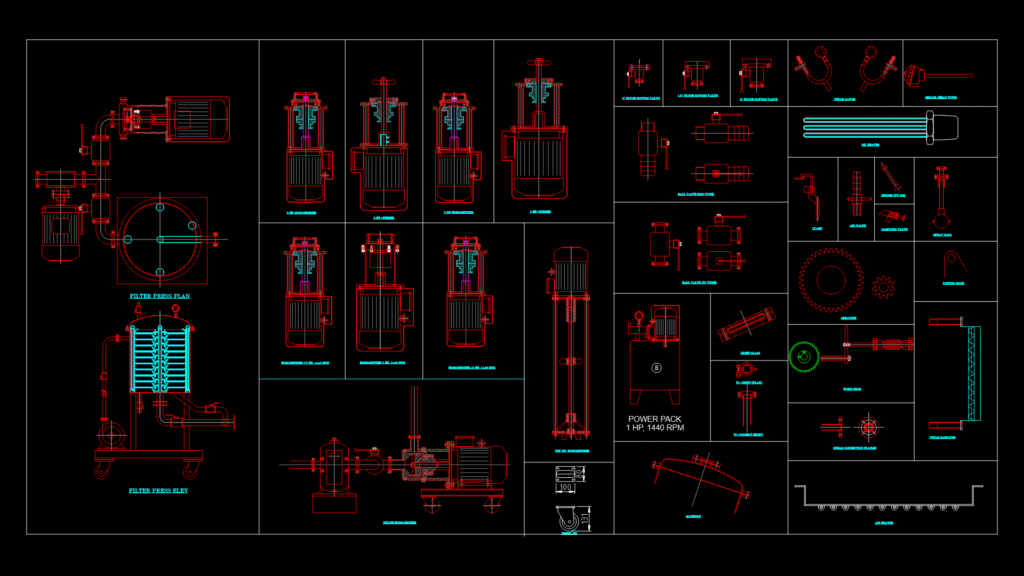

A comprehensive collection of standardized CAD blocks for chemical processing and reactor systems, featuring a variety of processing equipment components. The library includes multiple homogenizer models (3 HP, 5 HP, 7.5 HP, and 10 HP at 1440 RPM), various valve types (flush bottom valves in 1″, 1.5″, and 2″ sizes, ball valves in BSP and TC types, and sampling valves), and specialized equipment such as filter presses shown in both plan and elevation views. Thermal control elements include oil heaters, air heaters, steam radiators, and steam gauges for temperature regulation. Connection components feature TC connectors in both plan and elevation views, flanges, spray balls, and various sensor types including PT 100 temperature sensors. Supplementary mechanical components include sprockets, worm gears, clamps, and a 1 HP power pack. The blocks are well-organized with consistent scale and detail level suitable for P&ID diagrams and process engineering documentation.
Process Equipment Block Library for Chemical Reactor Systems
