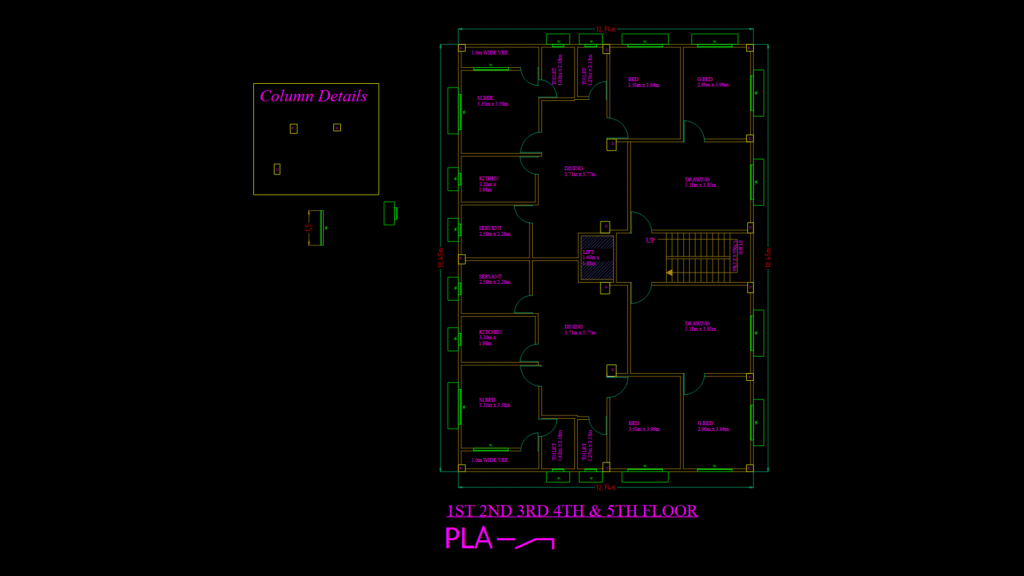

This drawing depicts a typical floor plan for a multi-story residential building, specifically labeled as applicable for the 1st through 5th floors. This layout features multiple bedrooms, dining rooms, kitchen spaces, and utility areas, with a centrally positioned stairwell and lift for vertical circulation. Each floor measures approximately 12.74m x 14.62m, with clearly demarcated structural columns at critical load-bearing positions. Room dimensions are precisely specified; primary bedrooms measure 3.35m x 3.35m, while dining areas span 3.13m x 3.15m. The design employs 1.2m wide verandahs and toilet facilities adjacent to bedrooms. The circulation pattern is efficiently arranged around the central lift and stair core, allowing for natural ventilation in most rooms. Column details are provided in a separate element, showing reinforcement configurations essential for structural integrity. The arrangement balances space utilization with structural requirements, featuring load-bearing walls that align vertically across all five floors to transfer loads effectively to the foundation.
Residential Multi-Story Floor plan with Column Details
