Scheme Fridge DWG Block for AutoCAD

Scheme Fridge DWG Block for AutoCAD

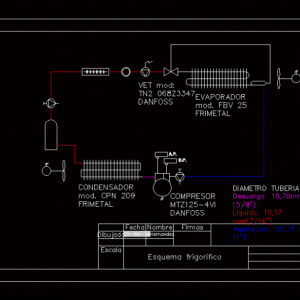

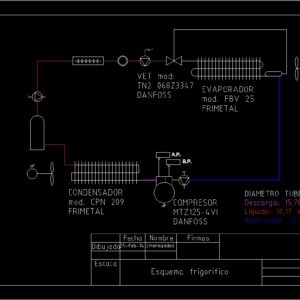

Esquema the beginning of a cold circuit

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

j.hernandez, drawn, b.p., a.p.

Raw text data extracted from CAD file:

25-feb-14 J.Hernandez \W0.16667; Nombre \W1.69048; Firmas Dibujado \W0.30952; Fecha \W0.40476; Escala \W4.82143; Esquema frigorifico B.P. A.P. EVAPORADOR mod. FBV 25 FRIMETAL CONDENSADOR mod. CPN 209 FRIMETAL VET mod: TN2 068Z3347 DANFOSS COMPRESOR MTZ125-4VI DANFOSS DIAMETRO TUBERIAS :\C6; Descarga: 15,78mm (5/8") \C1;Liquido: 10,17 mm(7/16") \C5;Aspiracion: 25,71 mm (1")

Language	Spanish
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	aspirador de pó, aspirateur, autocad, block, bohrmaschine, circuit, cold, compresseur, compressor, drill, DWG, fridge, guincho, installation, kompressor, machine, machine de forage, machinery, máqu, outline, press, rack, SCHEME, staubsauger, treuil, vacuum, winch, winde
