Security Platform DWG Block for AutoCAD

Security Platform DWG Block for AutoCAD

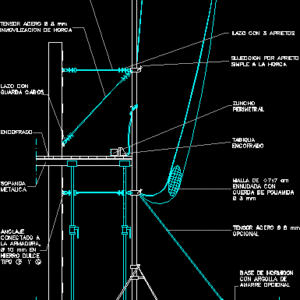

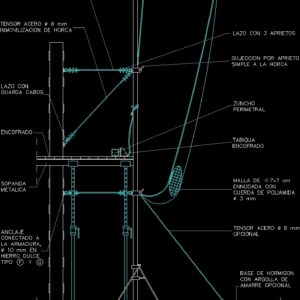

Platform with hanging networks

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

nib, Arkicad, scale, kind, Sweet iron, Mm in, connected, anchorage, For adapted struts, Mounting tripod, Wood sleeper, Mooring optional, With ring of, Concrete base, optional, Tensor steel mm, Polyamide rope, Ennobled with, Cm mesh, Metal, Sopanda, Formwork, Tabiqua, Cables, Tie with, Perimeter, band, Formwork, Tight tie, Stall immobilization, Tensor steel mm, Useful flight, In thick sheet, Tube fork mm, Of pillars, Height adjustment, The forks behind, Possible tensioner all, Simple the gallows, Tightening, Of the netting cloths, Anchor movements, Mm for, Polyamide rope

Raw text data extracted from CAD file:

Plumilla 0.2 0.2 0.5 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 ARKICAD a ESCALA 1/40 TIPO F Y G HIERRO DULCE d 10 mm EN LA ARMADURA, CONECTADO A ANCLAJE PARA PUNTALES ADAPTADOS TRIPODE DE MONTAJE 20x5 cm DURMIENTE DE MADERA AMARRE OPCIONAL CON ARGOLLA DE BASE DE HORMIGON OPCIONAL TENSOR ACERO d 8 mm d 3 mm CUERDA DE POLIAMIDA ENNUDADA CON MALLA DE 7x7 cm METALICA SOPANDA ENCOFRADO TABIQUA GUARDA CABOS LAZO CON PERIMETRAL ZUNCHO ENCOFRADO LAZO CON 3 APRIETOS INMOVILIZACION DE HORCA TENSOR ACERO d 8 mm VUELO UTIL 3,50 m EN CHAPA DE 4mm DE ESPESOR HORCA EN TUBO 100x50 mm DE PILARES MONTAJE DE 2 ALTURA LAS HORCAS TRAS POSIBLE TENSOR A TODAS SIMPLE A LA HORCA SUJECCION POR APRIETO DE LOS PANOS DE RED MOVIMIENTOS Y ANCLAJE d 10 mm PARA CUERDA DE POLIAMIDA

Language	Spanish
Drawing Type	Block
Category	Heavy Equipment & Construction Sites
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel, Wood
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, capacete, casque, cerca, d'une clôture, DWG, extincteur, extintor de incêndio, fence, feuerlöscher, fire extinguisher, hanging, helm, helmet, networks, platform, security, zaun
