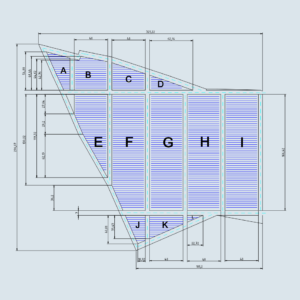

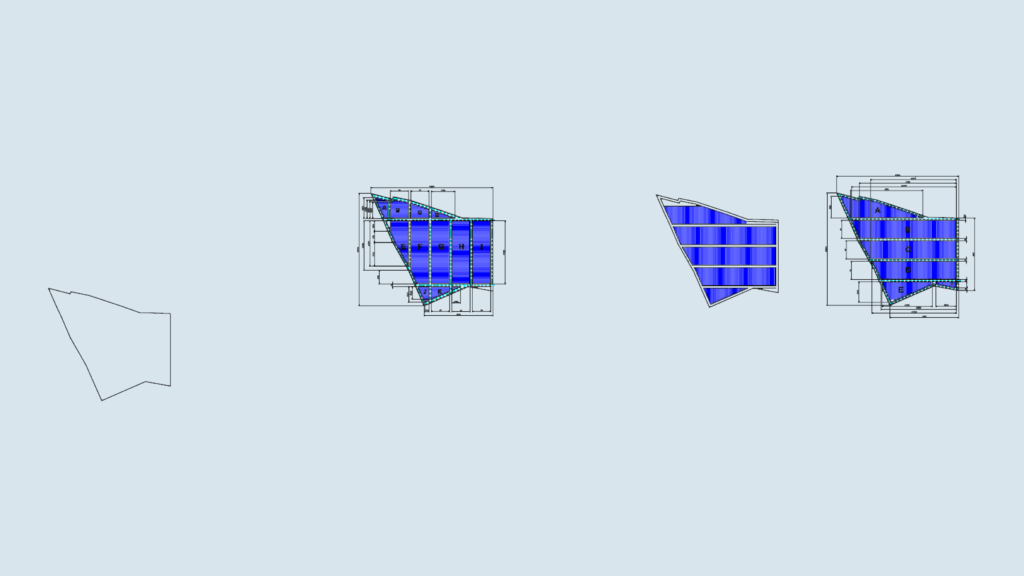

Segmented plan for an irregular floor area or custom paving layout, fully dimensioned in millimeters. I’ve included several views showing different ways to break down the shape, including one with 6 main sections (A-F) and another more granular version with zones A through L. It’s a clean CAD file with hatch patterns already applied to the segments. Dimensions are tight, most vertical strips are 48mm wide, but the overall shape is an awkward polygon.Standard architectural layers used, nothing messy. You get the flat geometry and the dimensioned layouts in one DWG
Segmented Floor Pattern Plan DWG with Dimensions
