PIT OF SEWAGE

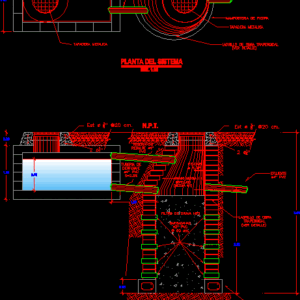

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Trapesoidal brick, Stone masonry, Metal lid, Plant system, Esc., Rebalse pvc pipe, Repellent, Tuned mix, Trapesoidal brick, step, Esc., its T. Cm rec. Cm, Gravel filter, Barbican pvc cm., Metal lid, Effluent pvc, Cm., Cm., Effluent pvc, Rebalse pvc pipe, Pvc vent pipe, Repellent, Tuned mix, N.p.t.

Raw text data extracted from CAD file:

0.30 1.20 0.70 3.61 0.30 2.30 1.00 0.40 1.09 0.40 1.40 2.40 LADRILLO DE OBRA TRAPESOIDAL (VER DETALLE) MAMPOSTERIA DE PIEDRA TAPADERA METALICA PLANTA DEL SISTEMA ESC. 1:25 TUBERIA DE REBALSE Ø4" PVC REPELLADO (MEZCLA 4:1) AFINADO MEZCLA 1:1 LADRILLO DE OBRA TRAPESOIDAL (VER DETALLE) PELDAÑO Ø 5/8" S E C C I O N ESC. 1:25 5 5 1.002693976380556 0.3999999999998636 \A1;4 Ø \S3/8; Est. Ø \S3/8; @ 20 cm Rec. 7 cm 1.089698315015994 5 FILTRO DE GRAVA Nº3 BARBACANAS Ø3" PVC @ 50 cm. TAPADERA METALICA \A1;2 Ø\S1#2;" EFLUENTE Ø4" PVC \A1;Est Ø \S3#8;" @20 cm. \A1;2 Ø\S1#2;" \A1;Est Ø \S3#8;" @20 cm. EFLUENTE Ø4" PVC TUBERIA DE REBALSE Ø4" PVC TUBERIA DE DESFOGUE Ø4" PVC S=2.8% REPELLADO (MEZCLA 4:1) AFINADO MEZCLA 1:1 1.399999999999977 2.399999999999864 0.2999999999999545 1.200000000000045 0.7000000000000455 3.605717020062684 N.P.T.

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Masonry
