Industrial Complex Layout Overview

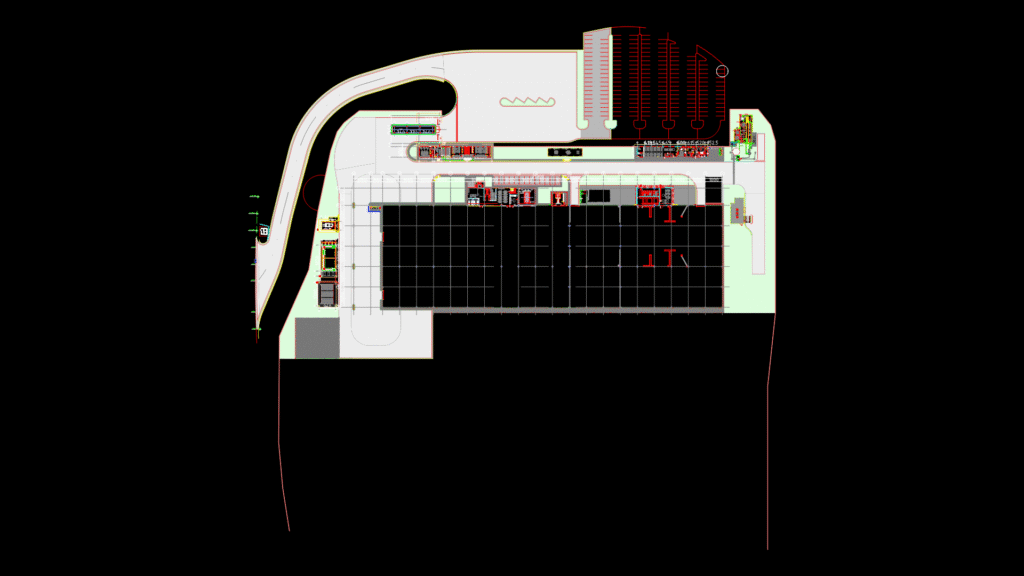

This comprehensive site master plan depicts the Gestamp Betim manufacturing facility layout with detailed architectural and infrastructure planning. This drawing shows a large industrial pavilion with multiple support buildings strategically positioned across the complex.
Main Components:
– Primary manufacturing pavilion (central black area) with precast concrete column structure
– Administrative building and logistics office positioned near the facility entrance
– Vehicle circulation routes with designated traffic patterns and loading zones
– Employee facilities including cafeteria and locker rooms
– Technical support areas such as maintenance facilities and equipment pits
– Utility infrastructure including electrical substation, water reservoir, and effluent treatment systems
The site features carefully planned vehicular circulation with roadways designed to accommodate industrial traffic, including space for truck maneuvering. The layout incorporates survey markers with specific coordinates (marked as MARCO points with elevations around 732.97-732.99 meters) establishing the site reference grid.
Building arrangements optimize material flow and operational efficiency while maintaining safety separation distances between processes. The drawing indicates precast structural elements with specialized connections designed for the heavy industrial application.
