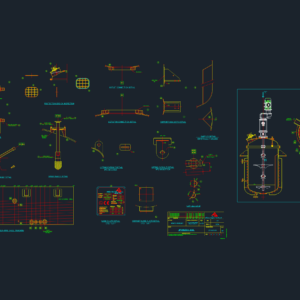

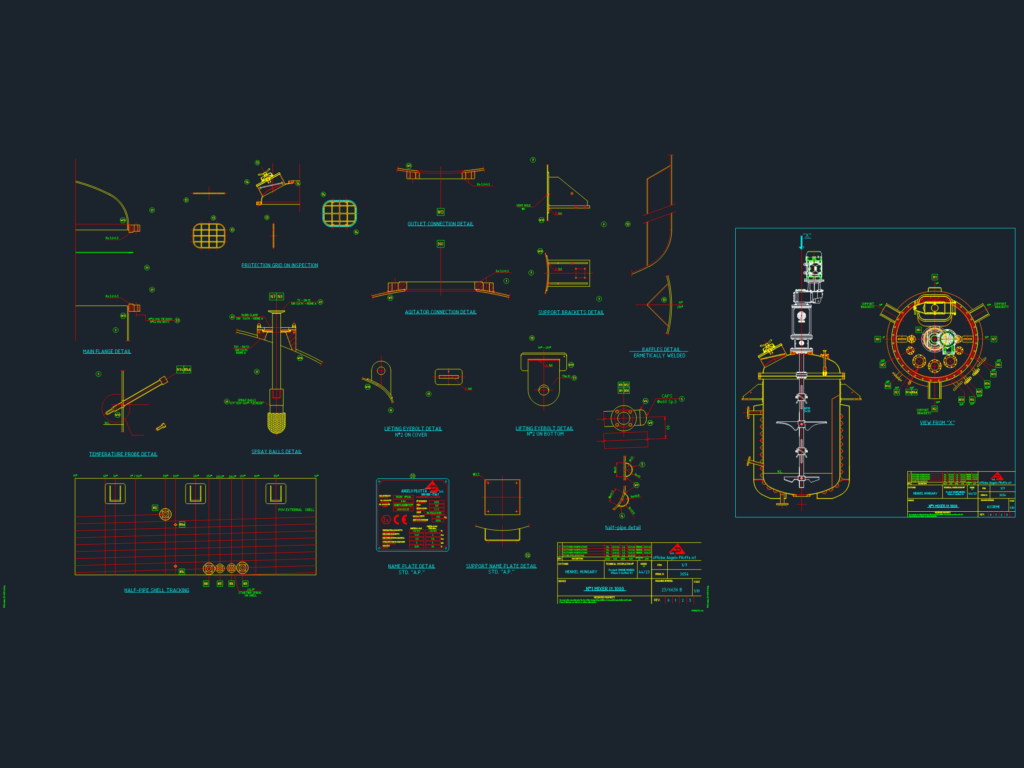

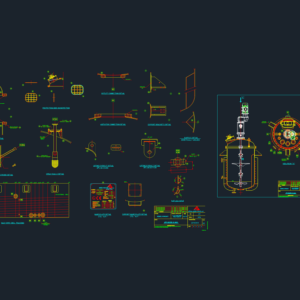

Industrial mixer assembly and fabrication details for a 1000 liter vessel, primarily constructed from AISI 316L (1.4404) stainless steel. Includes a main vertical cross-section with internal agitator blades and a plan view showing nozzle orientations N1 through N14. Detailed callouts cover half-pipe shell tracking using 60.3mm dia. pipe, spray ball assemblies, temperature probe housings, and the agitator service flange. Fabrication specs call for mechanical polishing to Ra max 0.8 micron & pickling/passivation. The design references PED 2014/68/UE and Machine Directive 2006/42/CE for ATEX rated zones. Also includes layouts for lifting eyebolts, support brackets with 15mm thk. ribs, and internal baffles ermetically welded to the shell
Stainless Steel 1000 Liter Industrial Mixer Assembly and Details
