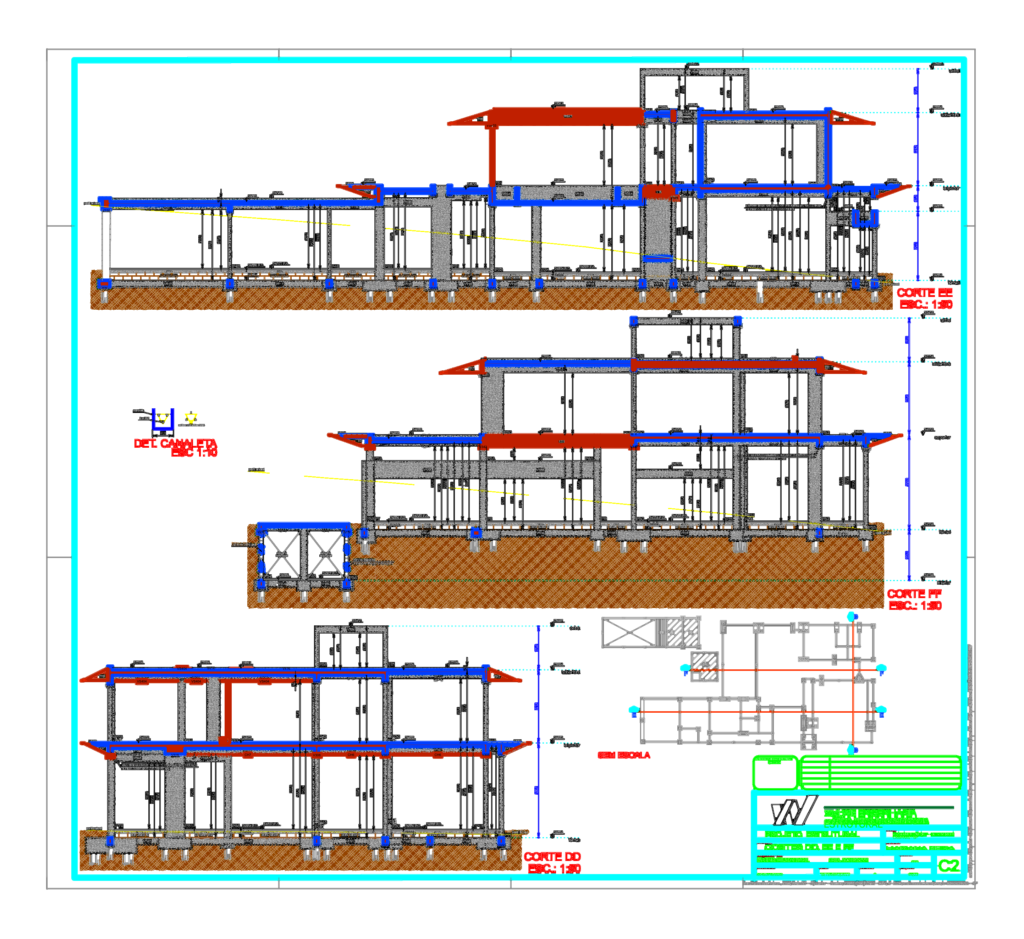

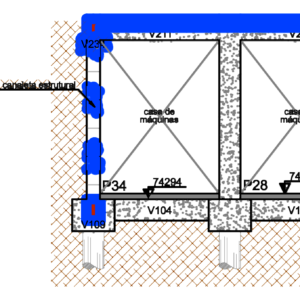

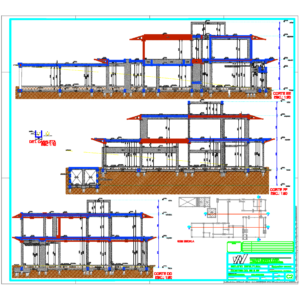

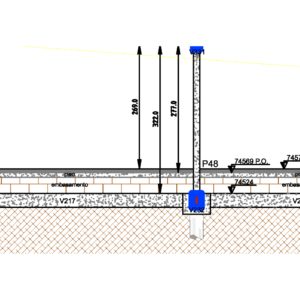

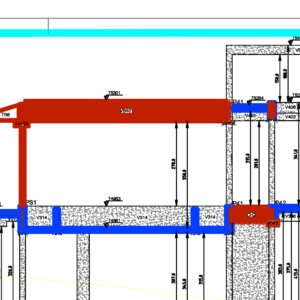

structural sections DD, EE, and FF for a multi-level building, likely a large house. contains three main cross-sections at 1:50 scale showing the concrete skeleton, foundation levels, and floor heights from the ground up to the water tank area. we’ve also included a 1:10 detail for a structural gutter (canaleta) including rebar specs like 6.3mm stirrups spaced at 20cm. standard structural set from WE Engenharia Estrutural with beam and pillar callouts (V and P numbers) throughout. shows levels for the ‘térreo’, ‘superior’, and ‘cobertura’.projeto estrutural com cortes e detalhe de canaleta
Structural Sections DD EE FF and Foundation Detail for Building Project
