Thermal Hydraulic System DWG Detail for AutoCAD

Thermal Hydraulic System DWG Detail for AutoCAD

Details – specification – sizing

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Underfloor heating, Radiators, P., A.c.s., Exchangers, Of heat, gives., Esc., Sanitary installations, date:, cabbage., T.b., Collectors a.c. Hb, Future, Bomb rad., A.f., Pump rec., Pressurizing equipment, fill, Recirc., Closed lts., T.b., Expansion vessels, Schematic heating acs with boilers exchangers

Raw text data extracted from CAD file:

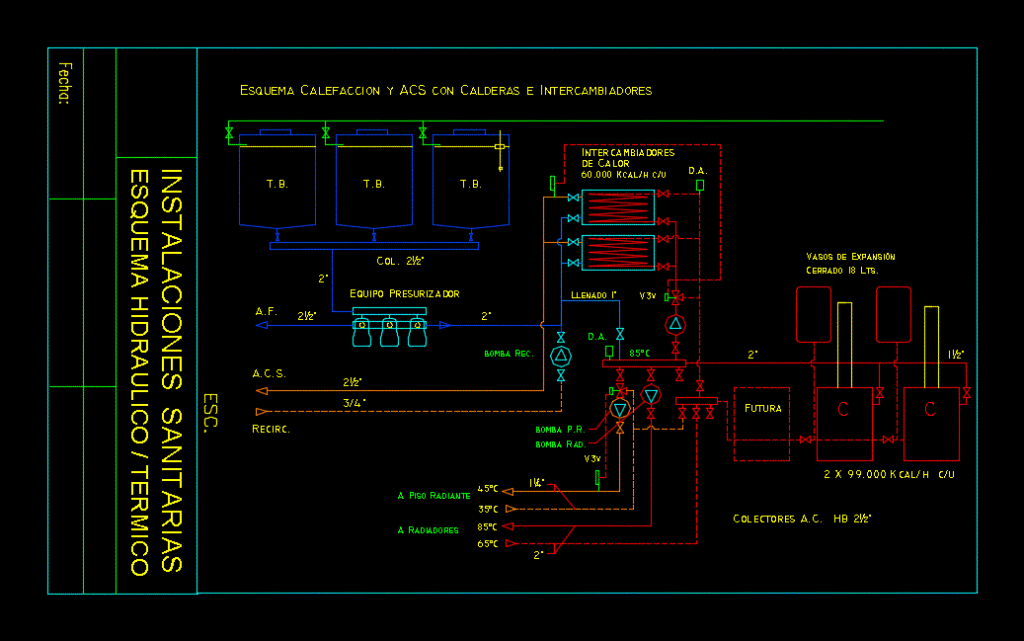

A Piso Radiante A Radiadores 35°C 45°C bomba P.R. 85°C C A.C.S. Intercambiadores de Calor C D.A. D.A. ESC. INSTALACIONES SANITARIAS ESQUEMA HIDRAULICO / TERMICO Fecha: Col. 2½" 60.000 Kcal/h c/u 2 X 99.000 Kcal/h c/u T.B. Colectores A.C. HB 2½" 1½" 2" V3v 85°C 65°C Futura bomba Rad. V3v A.F. 1¼" 2" bomba Rec. Equipo Presurizador 2" 2" Llenado 1" 2½" 2½" 3/4" Recirc. Cerrado 18 Lts. T.B. T.B. Vasos de Expansión Esquema Calefaccion y ACS con Calderas e Intercambiadores

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, DETAIL, details, DWG, einrichtungen, facilities, gas, gesundheit, hydraulic, installations, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, sizing, specification, system, thermal, wasser bestimmung, water
