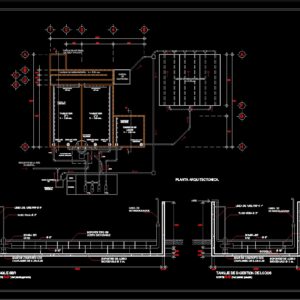

Treatment Plant DWG Block for AutoCAD

Treatment Plant DWG Block for AutoCAD

I’s a treatment plant wastewater.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Guide tube, Backwash line, Sludge digestion tank plant cut, Stainless steel brackets m., Hp jet pump, Guide tube, Concrete base with chamfers, nozzle, air, Frp air line, Tank sbr cut plant, Hp jet pump, Concrete base with chamfers, Frp air line, Stainless steel type bracket, Stainless steel brackets m., Backwash line, cellar, architectural plant., Carcamo of returns., ., ., Air-conditioning head., Hp jet pump, Influence of the municipal network., air, Submersible pump, Bed of mts., House of chlorination, Digested sludge pump., Sludge digester mts., Hp slurry pump, Static sieve of, bath, Influential diffuser., air, Hp jet pump, Decanter mts., Tank sbr mts., Decanter mts., Air-conditioning head., Disinfection tank mts., Tank of treated water delivery.

Raw text data extracted from CAD file:

0.25 TUBO GUIA d 3" LINEA DE RETROENJUAGUE TANQUE DE DIGESTION DE LODOS CORTE \C1;B-B'\H0.7145x;\C256; (Ver planta general) 0.25 0.25 d 10" SOPORTES DE ACERO INOXIDABLE @ 3 m. BOMBA JET 5 hp TUBO GUIA d 3" BASE DE CONCRETO CON CHAFLANES DE 0.25x0.25 d 6" BOQUILLA AIRE LINEA DE AIRE FRP d 4" TANQUE SBR CORTE \C1;A-A'\H0.7145x;\C254; \C256;(Ver planta general) 0.25 0.25 d 6" d 10" BOMBA JET 15 hp BASE DE CONCRETO CON CHAFLANES DE 0.25x0.25 LINEA DE AIRE FRP d 6" 0.25 SOPORTE TIPO DE ACERO INOXIDABLE SOPORTE TIPO DE ACERO INOXIDABLE SOPORTES DE ACERO INOXIDABLE @ 3 m. 0.25 0.25 LINEA DE RETROENJUAGUE BODEGA PLANTA ARQUITECTONICA. CARCAMO DE RETORNOS. 2 1 20 hp. 3 4 7.5 hp. CABEZAL DE AEREACION. BOMBA JET 15 hp. D INFLUENTE DE LA RED MUNICIPAL. A H AIRE BOMBA SUMERGIBLE 1hp. E C A' A B 1 LECHO DE SECADO DE LODOS H = 0.70 mts. CASETA DE CLORACION BOMBA DE LODOS DIGERIDOS. DIGESTOR DE LODOS H = 5.60 mts. BOMBA DE LODOS 3 hp. BOMBA DE LODOS 3 hp. TAMIZ ESTATICO (arriba de plataforma). BAÑO DIFUSOR DE INFLUENTE. B AIRE AIRE BOMBA JET 15 hp. DECANTADOR 4.87 mts. TANQUE SBR N° 2 H = 5.60 mts. TANQUE SBR N° 1 H = 5.60 mts. DECANTADOR 4.87 mts. B' CABEZAL DE AEREACION. TANQUE DE DESINFECCION H = 3.15 mts. 2 3 TANQUE DE ENTREGA DE AGUA TRATADA. 4 5 H G F A 9-10 0.97 12.26 0.53 0.53 3.06 6.13 18.55 6.21 18.25 3.33 9.96 5.48 18.30 1.50 4.10 5.00 0.60 4.10 1.50 9.025 0.60 5.00

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, DWG, kläranlage, plant, sewage, treatment, treatment plant, wastewater
