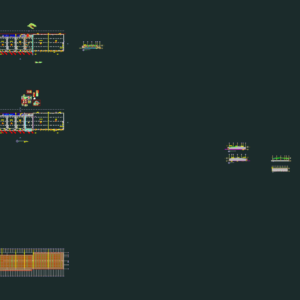

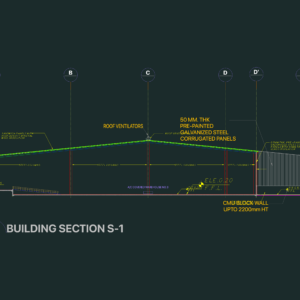

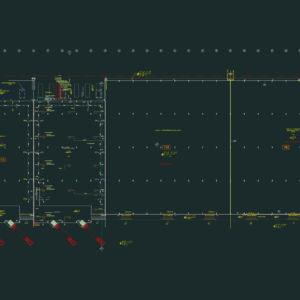

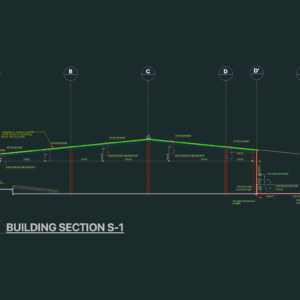

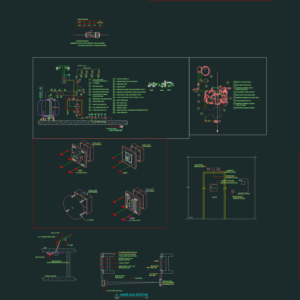

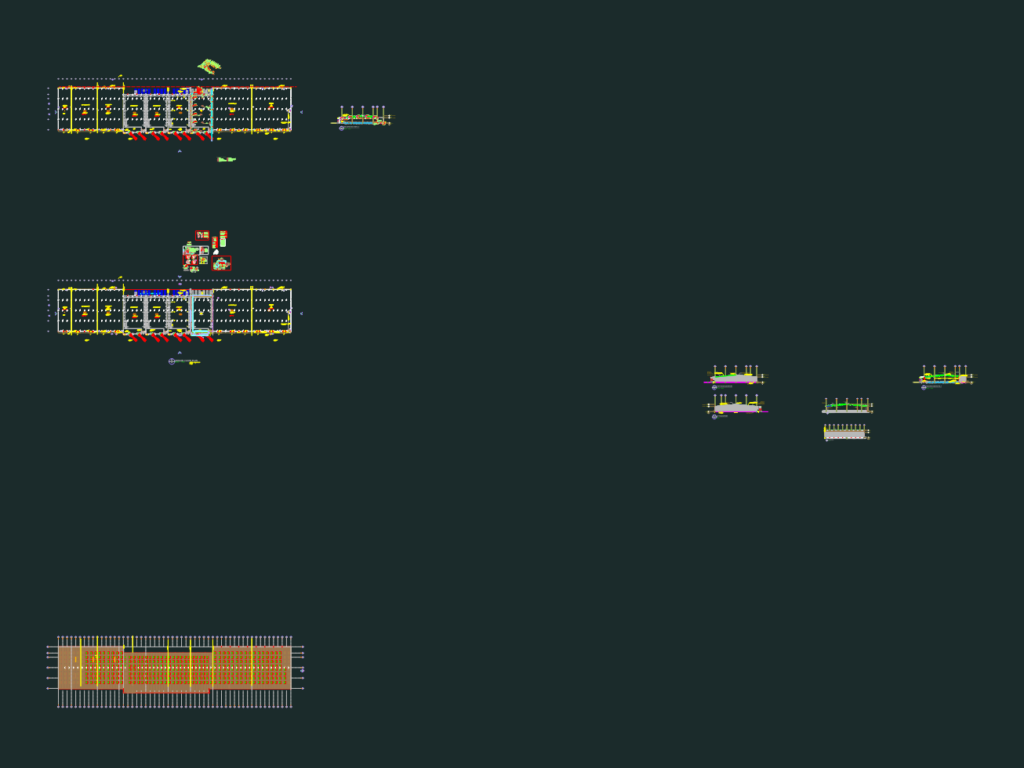

Warehouse complex layout covering about 34,000 sqm total. Includes architcetural plans for A/C and non-A/C units, loading docks, and mezzanine levels. We’ve the whole foam firefighting system, deluge valves, control panels, MICC cable runs, & detection zones. You’ll find wall specs like CMU block and insulated sandwich panels, plus roof vent layouts. It’s a solid set for industrial MEP work or large storage facility design. Includes loading dock elevations & typical drainage tank details too
Warehouse Foam Firefighting Design DWG & Details
