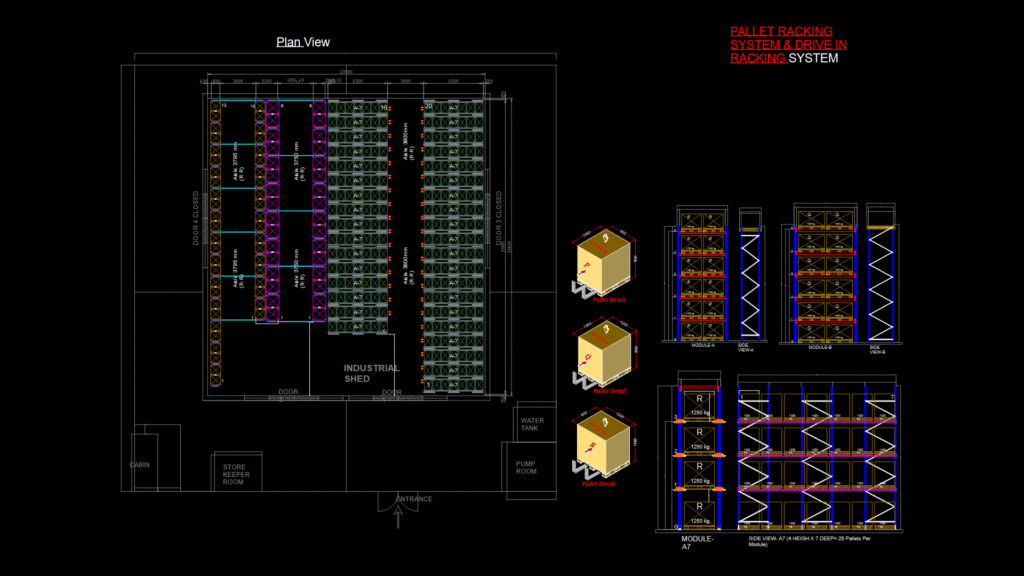

This comprehensive warehouse layout plan depicts the integration of selective pallet racking and drive-in racking systems within an industrial facility. The drawing shows both plan view and elevation details with three distinct module configurations (A, B, and C). Module A features a 5500mm total upright height with a 5250mm top loading height, while Module B reaches 5700mm with a 5470mm loading height. Module C stands at 5720mm with a 4300mm top loading height. The plan includes a detailed 7-deep drive-in rack system (Module A7) capable of storing 28 pallets per module (4 high × 7 deep). Pallet load capacities are clearly specified at 1100kg, 1250kg, and 1400kg across different rack sections. The facility includes operational zones such as an industrial shed with four doors, store keeper room, pump room, and water tank. Required aisle widths between racks range from 3750mm to 3800mm, optimized for forklift operation. The structural components include mother rails, bracing elements, and beam configurations ensuring load stability and compliance with industrial storage standards.
Warehouse Layout Plan with Selective and Drive-In Pallet Racking Systems
