Window Brackets Isometric DWG Block for AutoCAD

Window Brackets Isometric DWG Block for AutoCAD

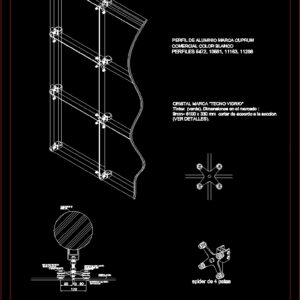

Window Brackets in isometric with its specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

equivalent, silglaze ii g.e., silicone seal, ced., tube of, crystal mm., arms, of aluminum, spider type stand, chapeton ac. stainless steel., kind of, paws spider, crystal brand, profiles, cuprum brand aluminum profile, commercial color white, mm cut according to section, tintex dimensions in the market, spider system

Raw text data extracted from CAD file:

O EQUIVALENTE SILGLAZE II G.E. SELLO DE SILICON CED. 40 TUBO DE 8" Ø CRISTAL 9 MM. 80 10 80 170 4 BRAZOS DE ALUMINO DE SOPORTE TIPO ARAÑA CHAPETON AC. INOX. TIPO 304 DE spider de 4 patas CRISTAL MARCA "TECNO VIDRIO" PERFILES 5472, 10581, 11163, 11286 PERFIL DE ALUMINIO MARCA CUPRUM COMERCIAL COLOR BLANCO 9mm= 6100 x 330 mm cortar de acuerdo a la seccion Tintex (verde). Dimensiones en el mercado : (VER DETALLES). SISTEMA SPIDER

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, brackets, clôture métallique, de fer, DWG, iron, isometric, metal fence, schmiede tür, smithy door, specifications, structur, window
