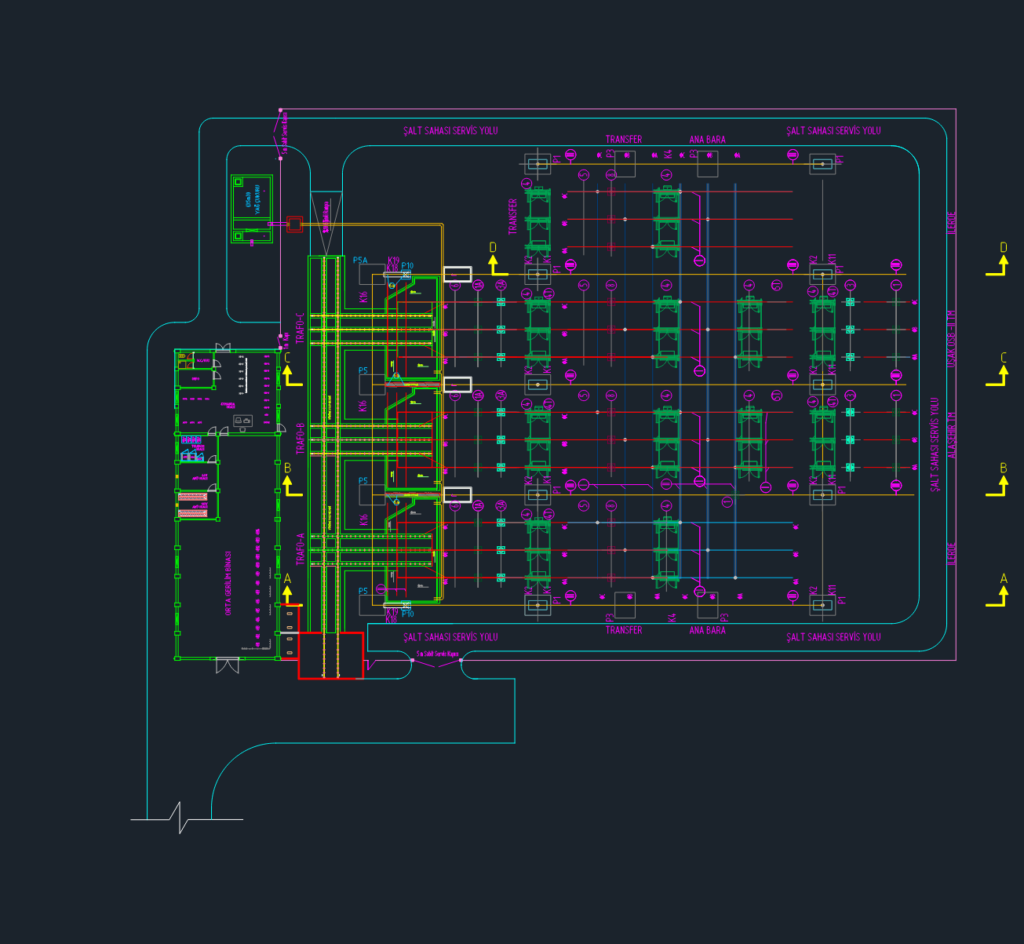

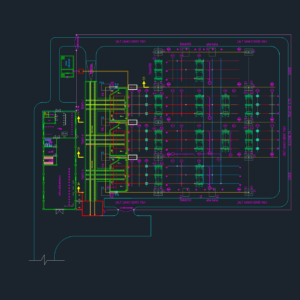

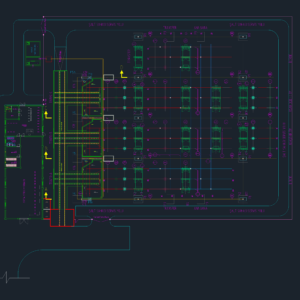

General layout for 154 kV Kisladag Substation incl. switchyard & MV building. Shows 3 transformer bays (Trafo A, B, C) for 154/34.5 kV 50(62.5) MVA units. layout includes detailed specs for 170 kV CTs, VTs, and isolators. Covers servicce roads, fire walls, cable trenches, and a 35m3 oil pit. Technical notes mention 2×954 MCM Al conductors & 96mm2 steel shielding. MV building plan shows control room, battery rooms, & telekom zones. Includes standard safety clearances (faz-faz, faz-toprak) for 154kV high voltage systems. All dims in mm.
154 kV Substation General Layout with Medium Voltage Building
