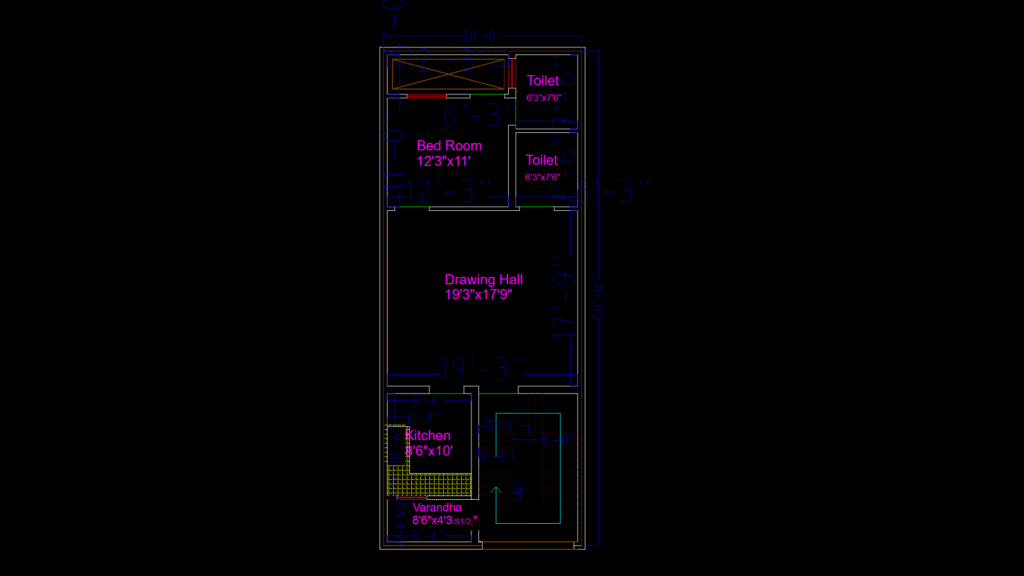

This floor plan depicts a compact one-bedroom apartment layout optimized for efficient space utilization. The unit features a spacious bedroom (12’3″×11′), two identically sized toilets (6’3″×7’6″ each), a generous drawing hall (19’3″×17’9″), a functional kitchen (8’6″×10′), and a verandah (8’6″×4’3½”). The overall footprint is approximately 20’×50′, providing about 1000 sq.ft of living space. The dual toilet configuration offers flexibility for family living or guest accommodation. Door placements facilitate smooth circulation between spaces, with the drawing hall serving as the central hub connecting all rooms. The kitchen’s proximity to the verandah creates potential for natural ventilation and outdoor dining. Wall thicknesses appear standard for residential construction, likely 9″ for external walls and 4″-5″ for internal partitions. The rectangular layout maximizes usable floor area while maintaining appropriate proportions for each functional zone.
1BHK Residential Floor Plan with Dual Toilets & Verandah
