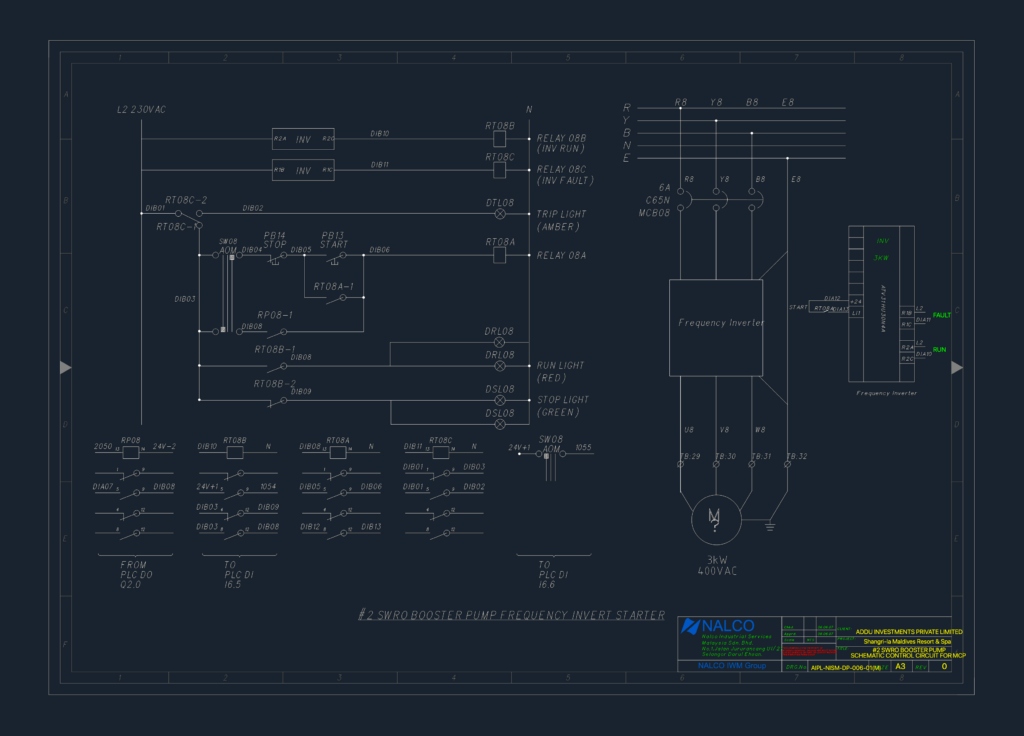

Schematic control circuit for a 3kW 400VAC frequency inverter starter using an Altivar 31 series drive.. Includes PLC I/O wiring for DO Q2.0 & DI I6.5/I6.6, along with local start/stop pushbutton logic and status indication. Circuit features 6A MCB protection and relay logic for run/fault feedback.
#2 SWRO Booster Pump Starter
