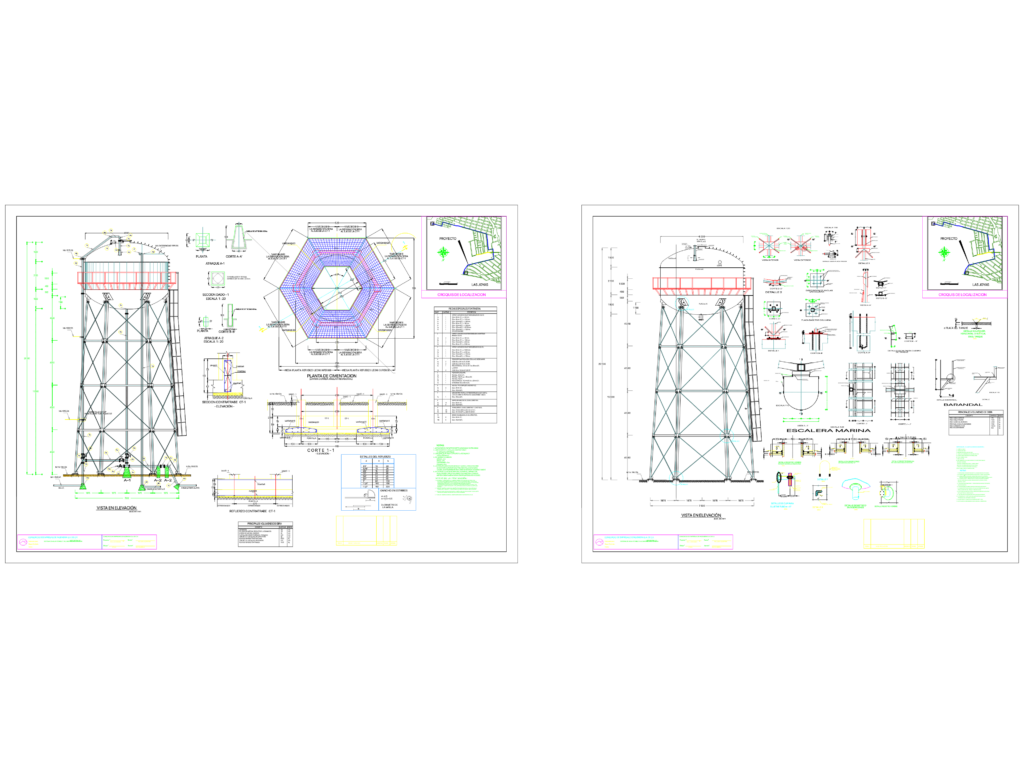

Elevated 20m tank structural set including hexagonal ring foundation plan, dado reinforcement, and ASTM A 53 Gr. B piping details. Structural elements specify concrete at Fc’=250 kg/cm2 and corrugated steel reinforcement at Fy=4200 kg/cm2.
20m Elevated Tank Structural Detail DWG
